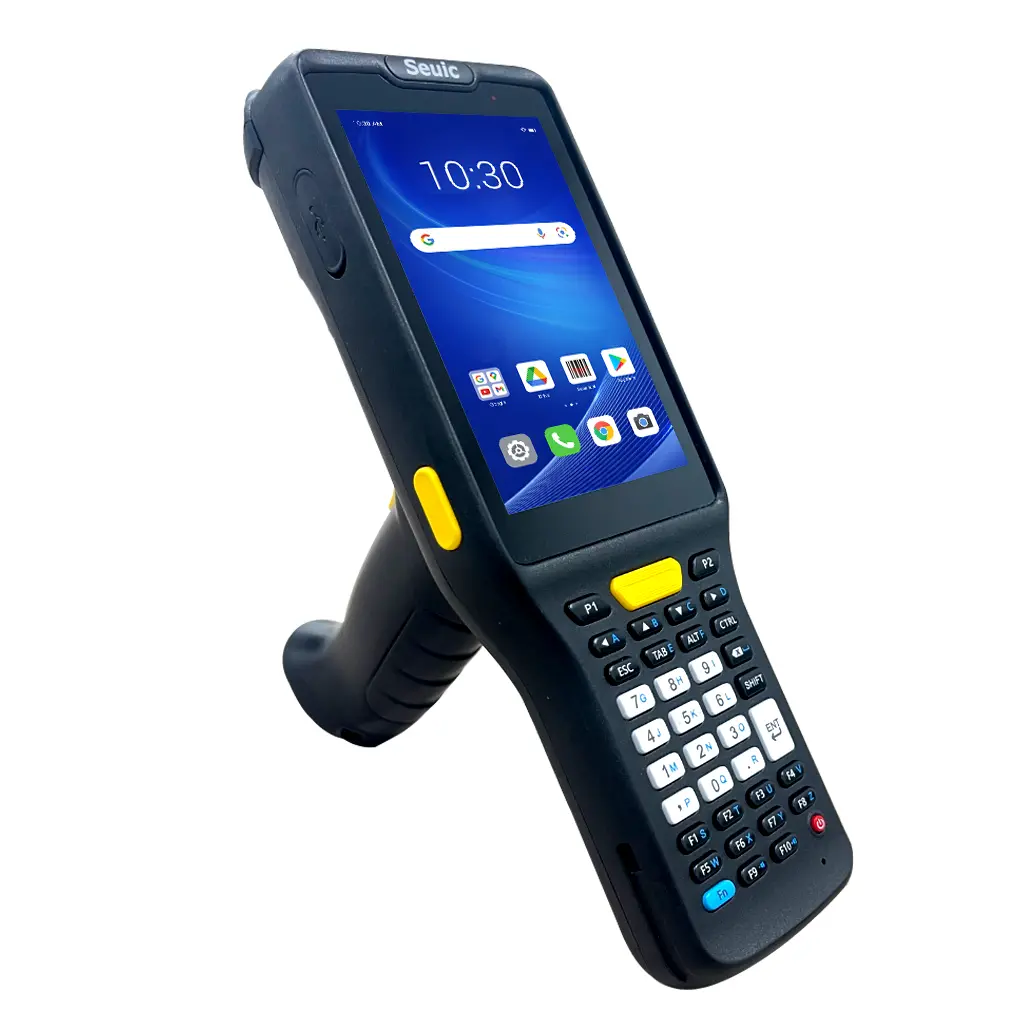

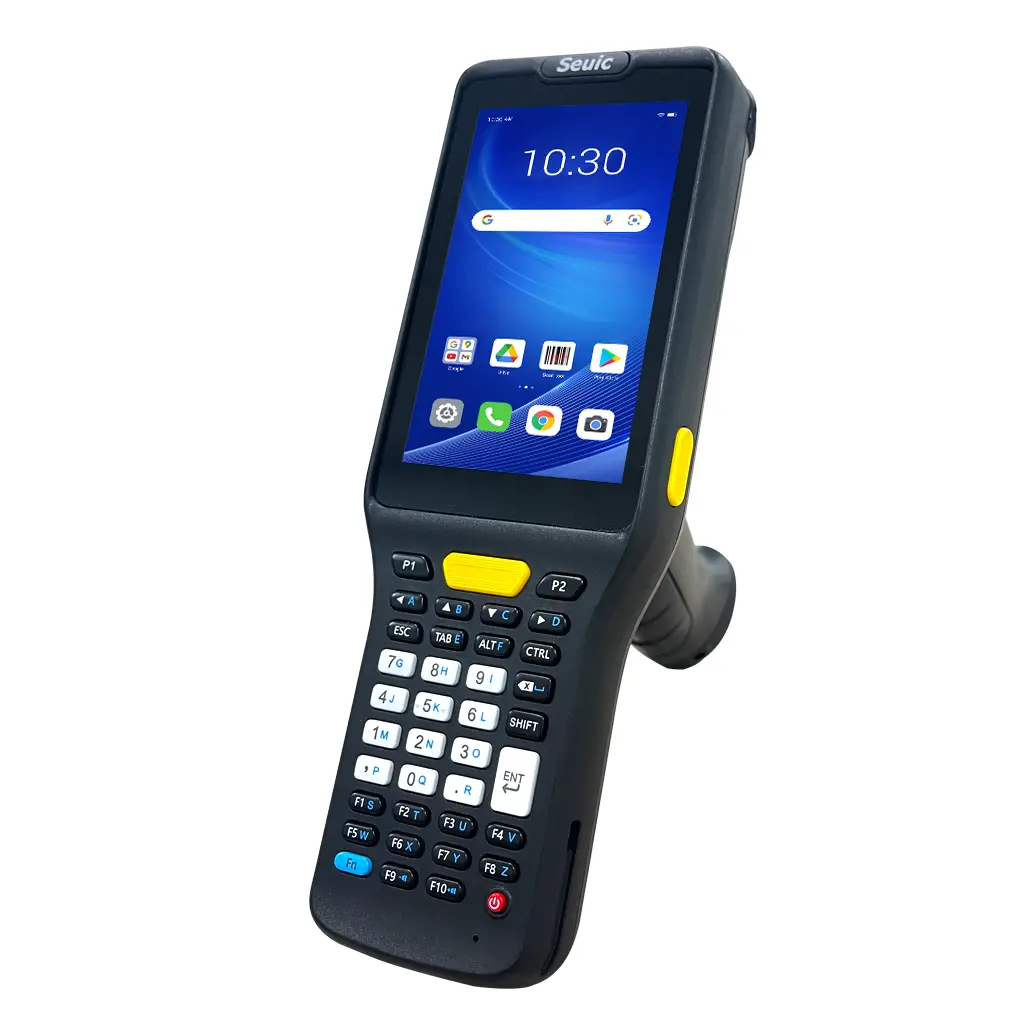

AUTOID Q7-(Grip) Handheld Terminal

  • CPU: Qualcomm octa-core, up to 1.8 GHz
  • Display: 4-inch WVGA
  • Memory (RAM/ROM): 3 GB/32 GB (Standard SKU), 4 GB/64 GB
  • Power: 5200 mAh
  • Weight: 14.8 oz./420 g
  • Drop Specifications: 6 ft./1.8 m drops to concrete
  • Sealing: IP65

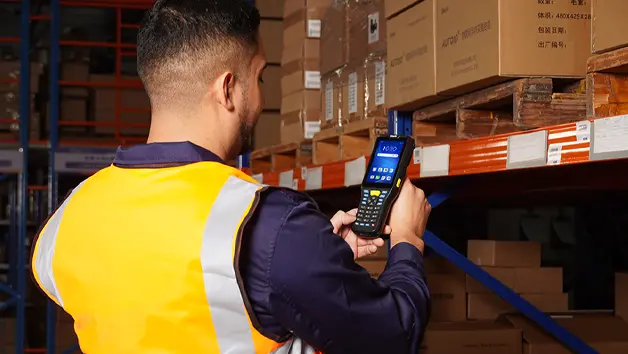

A Cost-effective Industrial Grade Handheld Terminal Used for Professional Warehousing Applications. Straight shooter, trigger handle, and two-dimensional scanner provide users with cost-effective solutions for long-range scanning and warehousing.

Features

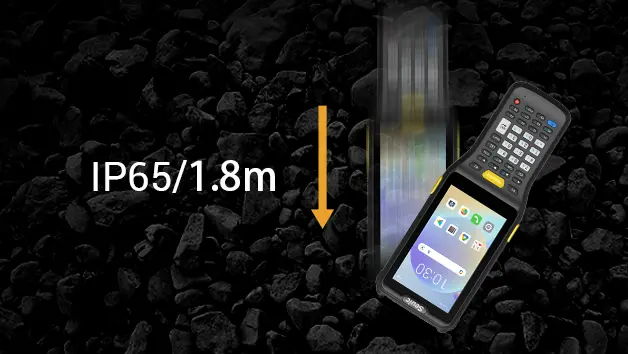

● IP65, 6 ft./1.8 m drops to concrete, standard battery life up to 14 hours.

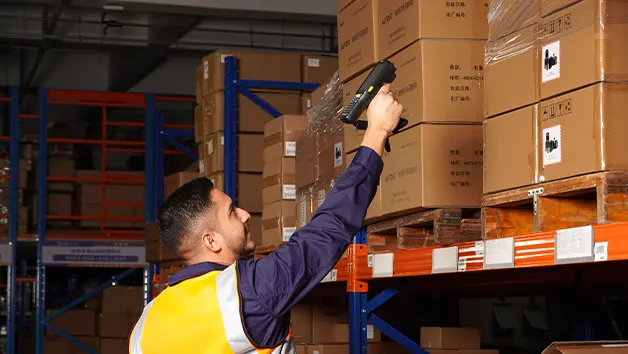

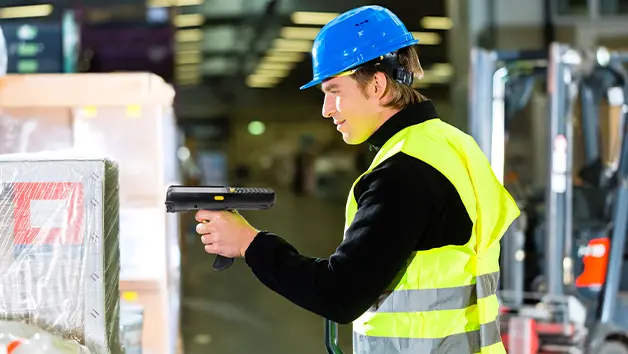

● Short-, mid-, or long-range scanning, up to 15m away; high performance WiFi.

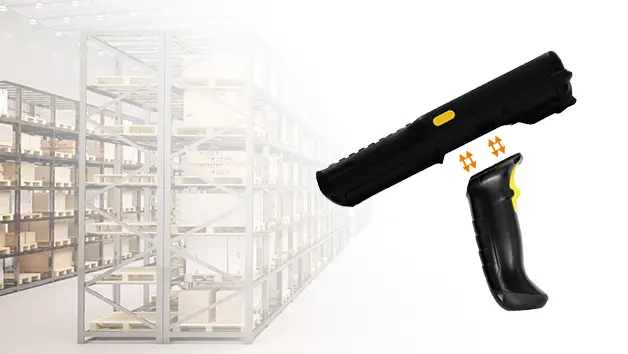

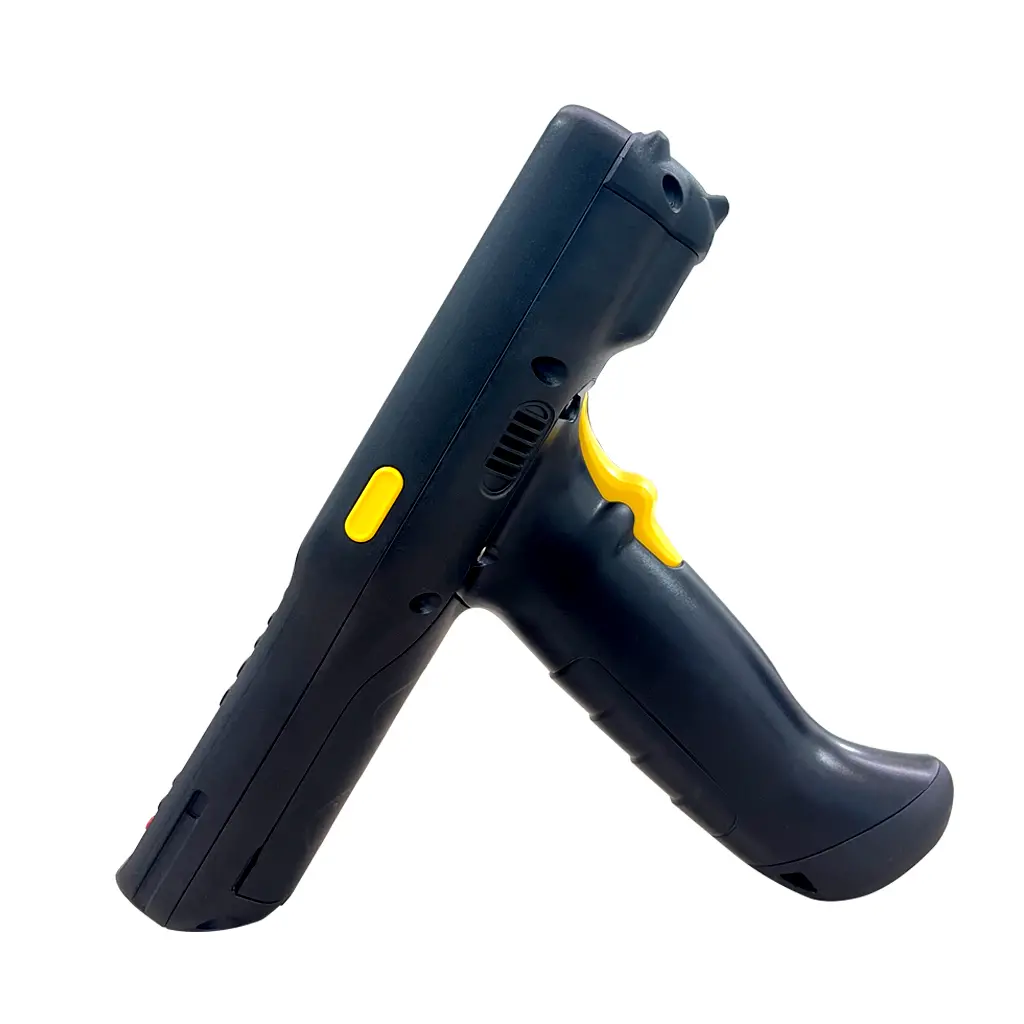

● Multiple accessories: Pistol Grip, Multifunctional Bag, Single Charging Cradle, 4-slot Charging Dock, 4-slot Battery Charger.

AUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld TerminalAUTOID Q7-(Grip) Handheld Terminal

Specifications
Physical Characteristics
Dimensions
8.0 in. L × 2.8 in . W × 1.1 in. H
203 mm L ×72 mm W ×27 mm H(width 70mm side keys excluded)
Weight
17.5 oz. /495 g (battery and pistol grip included,)
14.8 oz. /420 g (battery included, without pistol grip)
Display
4.0 in. (480 x 800 )
Touch Panel
Capacitive touch, supporting wet hand mode and glove mode
Power
Detachable 5200mAh Li-ion rechargeable battery
Expansion Slot
Maximum compatible storage: 32GB
Interface / Communication
Support USB2.0 highspeed, support OTG
Notifications
Sound, vibrator, LED indicator
Keypad
31keys
Voice and Audio
Built-in loudspeaker, built-in dual microphone
Performance Characteristics
CPU
Cortex™-A53 Octa core 1.8GHz
Operating System
Android 11.0
Memory
4GB RAM / 64GB flash memory
User Environment
Operating Temp.
-4 °F to 122 °F / -20℃ to +50℃
Storage Temp.
Battery included: -40 °F to 158 °F / -40 °C to +70 °C
Humidity
5% to 95% RH non-condensing
Drop Spec.
Multiple 5.8 ft. / 1.8 m drops to marble across the operating temperature range
Tumble Spec.
1,000 1.64 ft. / 0.5 m tumbles (2,000 impacts)
Sealing
IP65
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Standard: optical sensor, proximity sensor, acceleration sensor, electronic compass and gyroscope
Data Capture
Scanning
Honeywell SR 2D scan engine
Zebra SE5500 2D scan engine
Zebra SE4850 2D scan engine
Camera scanning
Camera
Rear: 13 MP autofocus
NFC
Supports tags ISO15693, ISO14443A/B (without encryption protocol), ISO14443A with encryption protocol (Mifare One S50,S70 and compatible cards); supports NFC protocol
Wireless Connectivity
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Working Channel
CH1~CH14, CH34-CH165
Security of WLAN
Refer to the specifications for detailed parameters
Accessories
Standard
Power adapter, USB cable, hand belt, battery
Additional
4-Slot battery charger, single slot device charger include battery, single slot charging dock include battery (support ethernet), USB cable with end flap clip, touch pen, multifunctional bag, vehicle charger, OTG data cable, hand tether, five-slot device charger, five-slot device charger(support ethernet), pistol grip, tempered glass screen protector
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11.0
System Programming Environment
Android studio
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
