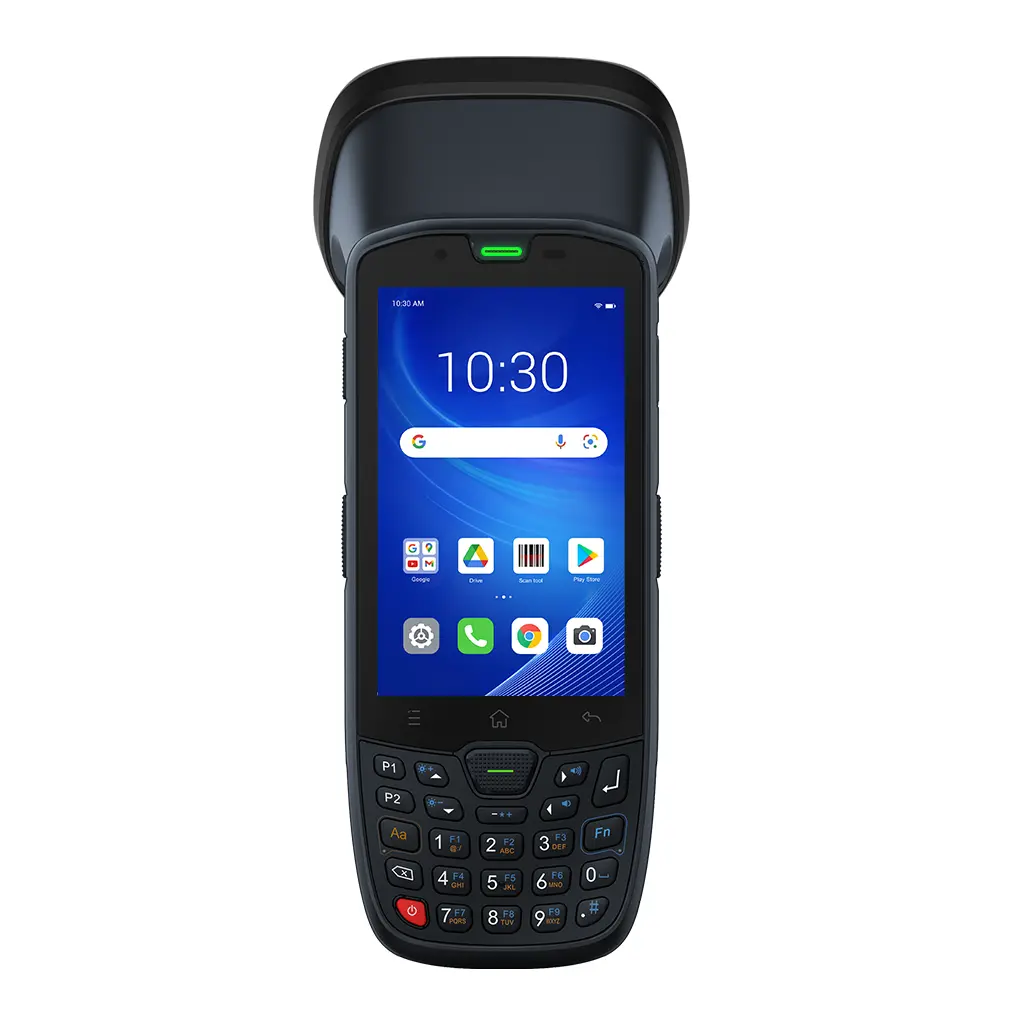

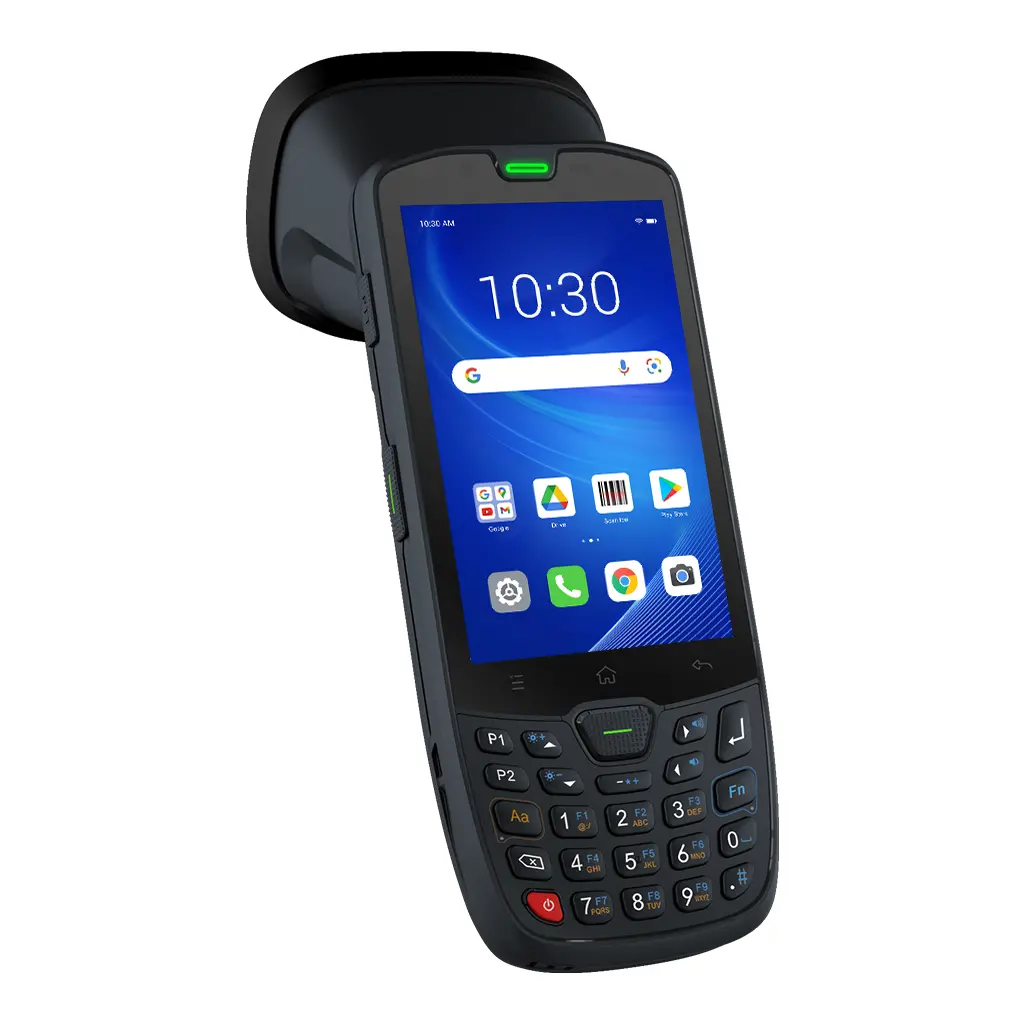

AUTOID 10-DPM Handheld Mobile Computer

  • CPU: Octa core, up to 2.0 GHz
  • Display: 4-inch, WVGA resolution
  • Memory (RAM/ROM): 4 GB/64 GB
  • Power: 5360 mAh
  • Weight: 12.1 oz/ 343g(with battery)
  • Drop specification: 4.9 ft/1.5m drops to concrete
  • Sealing: IP65

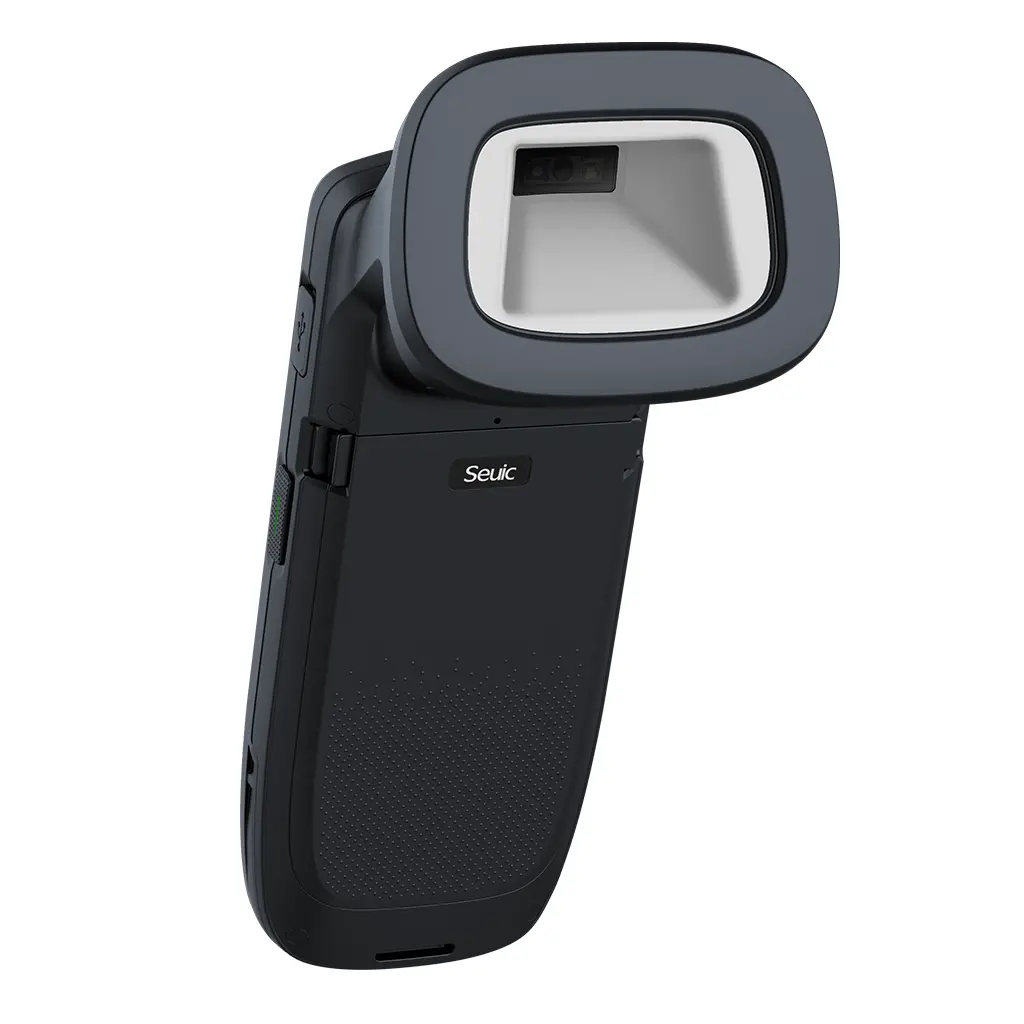

A new platform will combine powerful "Core" capabilities with fast and accurate AI scanning. Design the battery back cover so that it is easy to replace battery. When it comes with a special designed diffuse light cover, and can intelligently adjust the lighting mode, it makes the DPM reading ability to a unparalleled level, it greatly improve the reading ability on reading laser engraved code on PCB and metal, low contrast, dot peen, uneven code on curved, reflective or colored background, also can reading invisible code, Furthermore, It's designed to enhance human-computer interactions in several ways, including more precise reminders and a more intuitive terminal operation.

Features

● Qualcomm octa core, WIFI6 Ready, 2.4G+5G dual band WIFI, AI 1.15 TOPS, UFS flash.

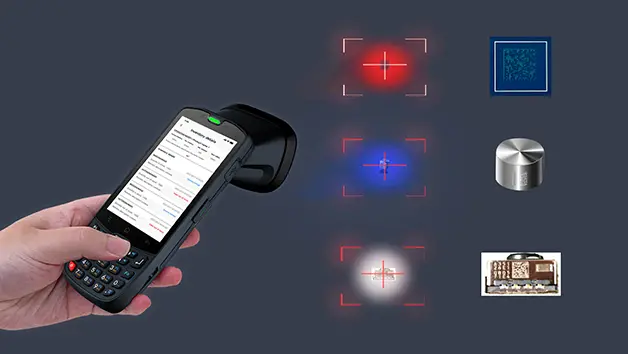

● Three color illumination, automated light adaption with the background and texture.

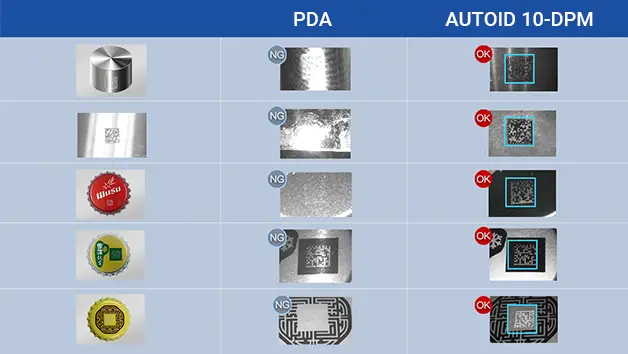

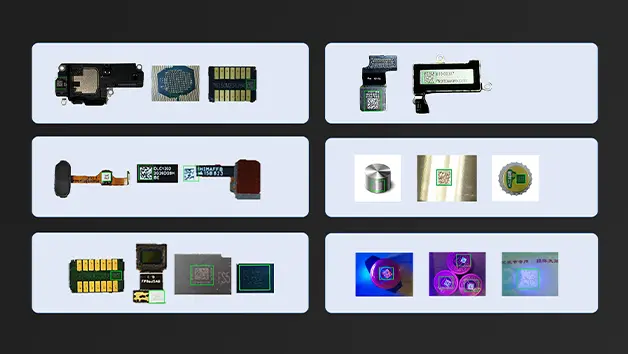

● Unique lighting pattern, huge optimization on decoding at curved reflective/shrink wrap surface, muti-color laser etch, dot peen, inkjet, invisible, low contrast code on metal, pcb board and more.

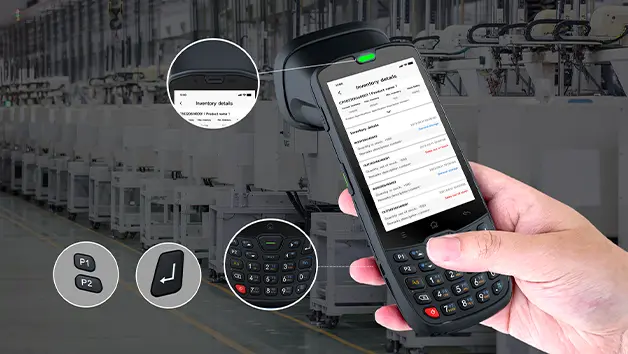

● Ergonomic design with indicator light and less than 350g weight, comfort to hold on long shifts.

AUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile ComputerAUTOID 10-DPM Handheld Mobile Computer

Specifications
Physical Characteristics
Dimensions
7.6 in. L x 3.0 in. W x 2.7 in. H
193.54 mm L x 77.21 mm W x 68.89 mm H
Weight
12.1oz. / 343g (include battery, varies by different configurations)
Display
4.0 in. WVGA (800 x 480)
Touch Panel
Industrial grade low temperature resistant IPS screen, capacitive, touchable, dual mode touch-with or without a thick glove/with or without wet hand
Power
Optional detachable 3.85V rechargeable 5360mAh Li-ion battery (built-in backup li-ion battery of 50mAh 16C)
Side Type-C interface, support quick charge, intelligent identification of PC and charger, support 18W fast charge
End interface: support 5V/2V charging
Expansion Slot
Micro SD Card, 128GB SDHC compatible
Interface / Communication
Support Type-C, support OTG
Notifications
Sound, vibrator, LED light indication
Keypad
27 keys: front key*24, side scan key*2, PTT key*1 (inner light-transmitting industrial IMD keyboard), LED (buttons with backlight)
Voice and Audio
Built-in single loudspeaker, built-in dual microphone, Type-C support earphone
Performance Characteristics
CPU
Qualcomm Octa-core 2.0GHz
Operating System
Android 11, GMS with AER
Memory
4GB LPDDR4 RAM / 64GB UFS2.1 ROM
User Environment
Operating Temp.
-4 °F to 122 °F / -20 °C to +50 °C
Storage Temp.
-40 °F to 158 °F / -40 °C to +70 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
Multiple 4.9 ft. / 1.5m drops to marble across the operating temperature range
Tumble Spec.
500 rounds of tumble from 1.6 ft. / 0.5 m equals to 1000 impacts
Sealing
IP65
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Optical sensor, proximity sensor, gravity sensor, gyroscope, E-compass
Data Capture
Scanning
DP and HDP scan engine
Wireless Connectivity
WLAN Radio
IEEE 802.11a/b/g/n/ac/ax ready (2.4G/5G dual-frequency WIFI)
WLAN-Data Rates
Refer to the specifications for detailed parameters
WLAN-Working Channel
CH1-CH13, CH34-CH165
Security of WLAN
OPEN, WEP, WPA2-PSK (TKIP+AES), TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, etc
WWAN Radio
Refer to the specifications for detailed parameters
GPS
Refer to the specifications for detailed parameters
WPAN-Bluetooth
Bluetooth 5.1 (support BLE)
Accessories
Standard
Universal adapter×1, USB cable×1, battery×1, hand belt×1
Additional
4-Slot battery charger, Single device charging cradle with one spare battery charging slot, 5-slot charging cradle, tempered glass screen protector, hand belt
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11
System Programming Environment
Eclipse, android studio
