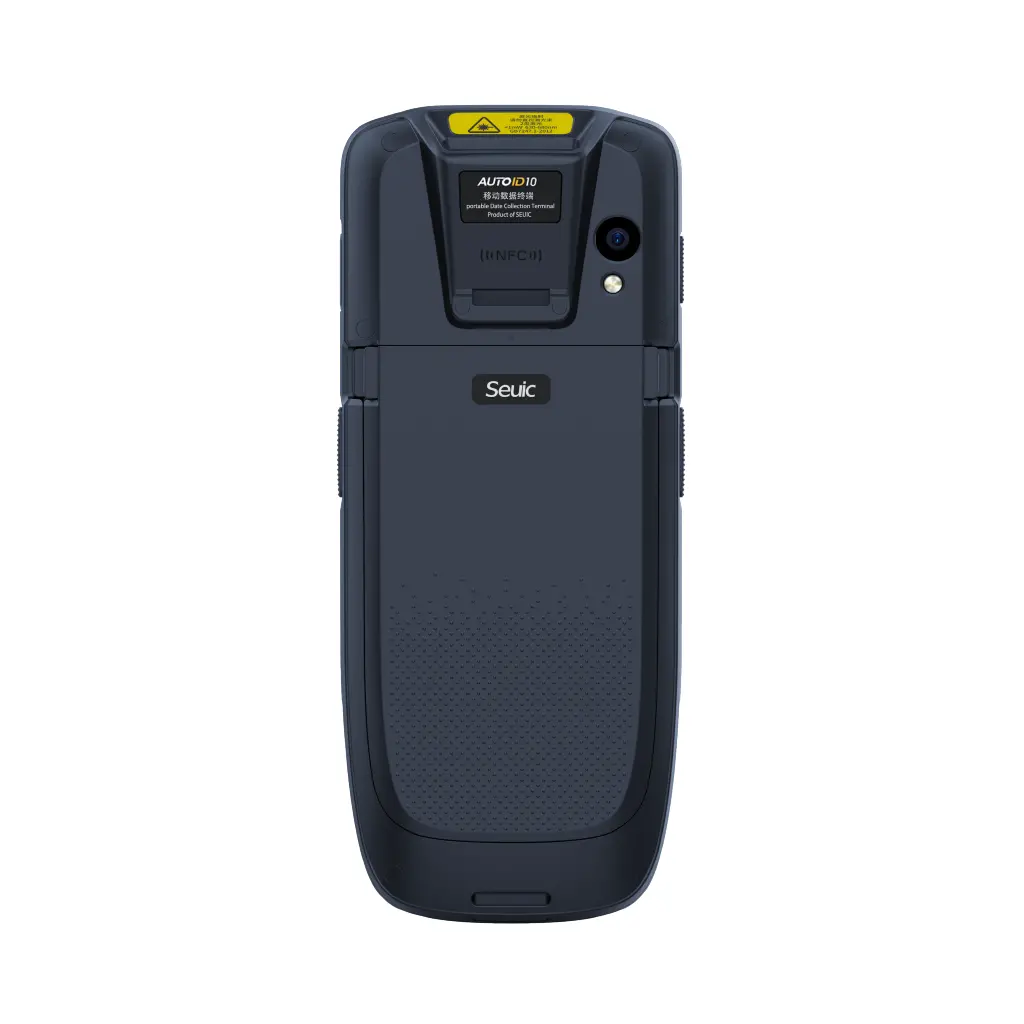

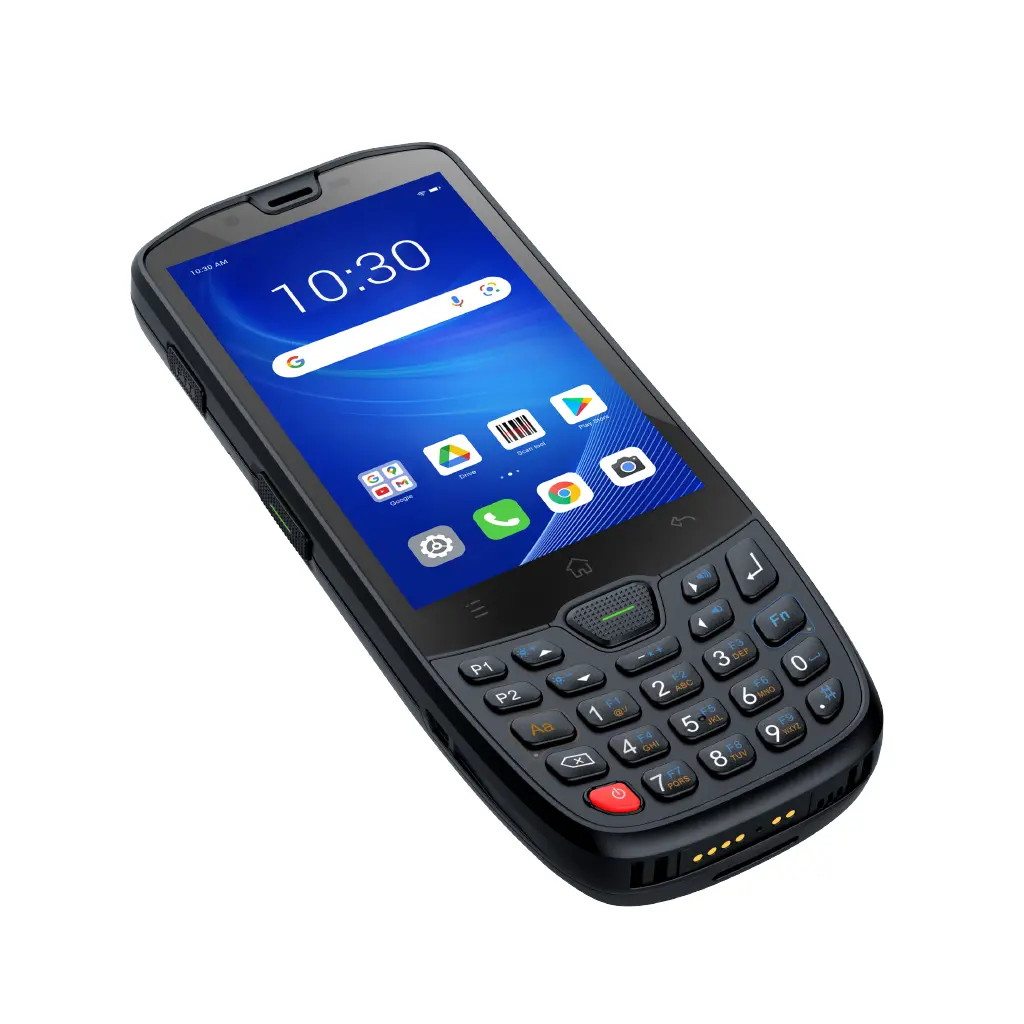

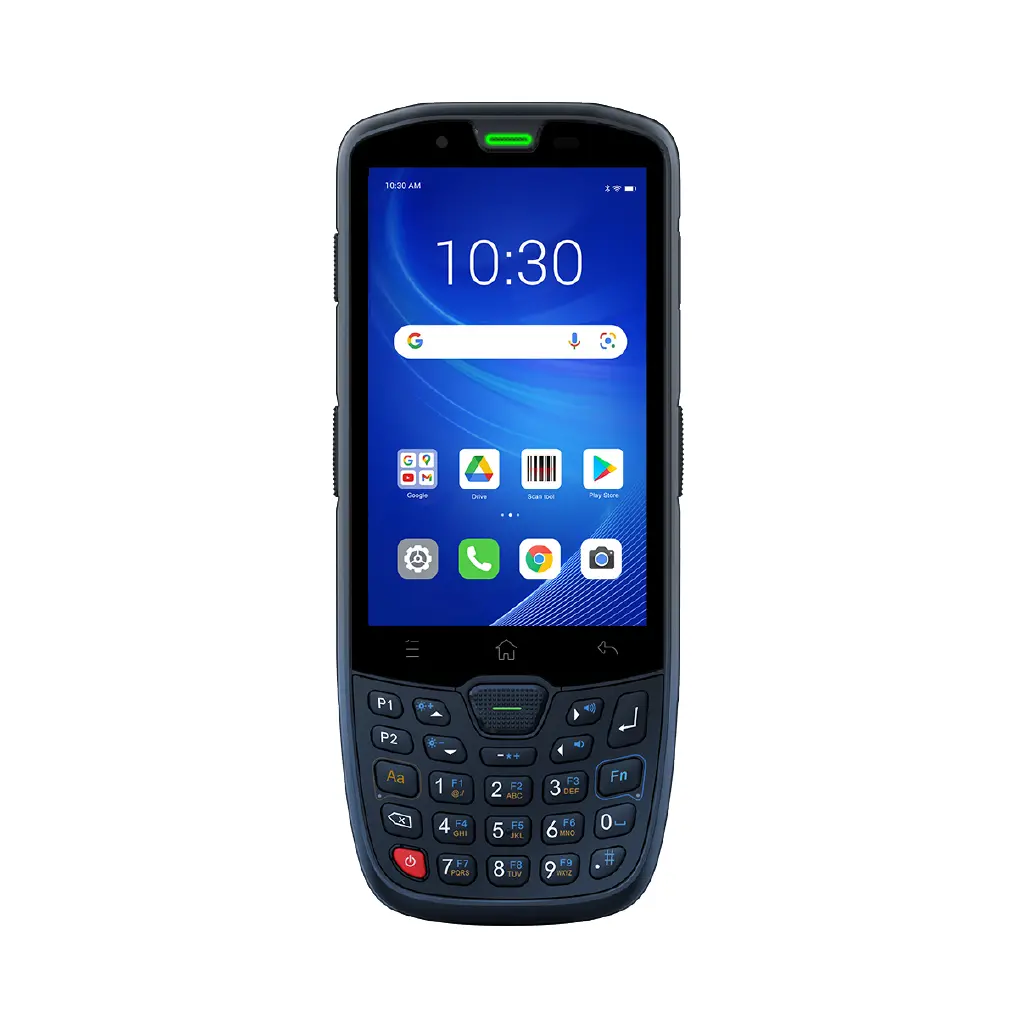

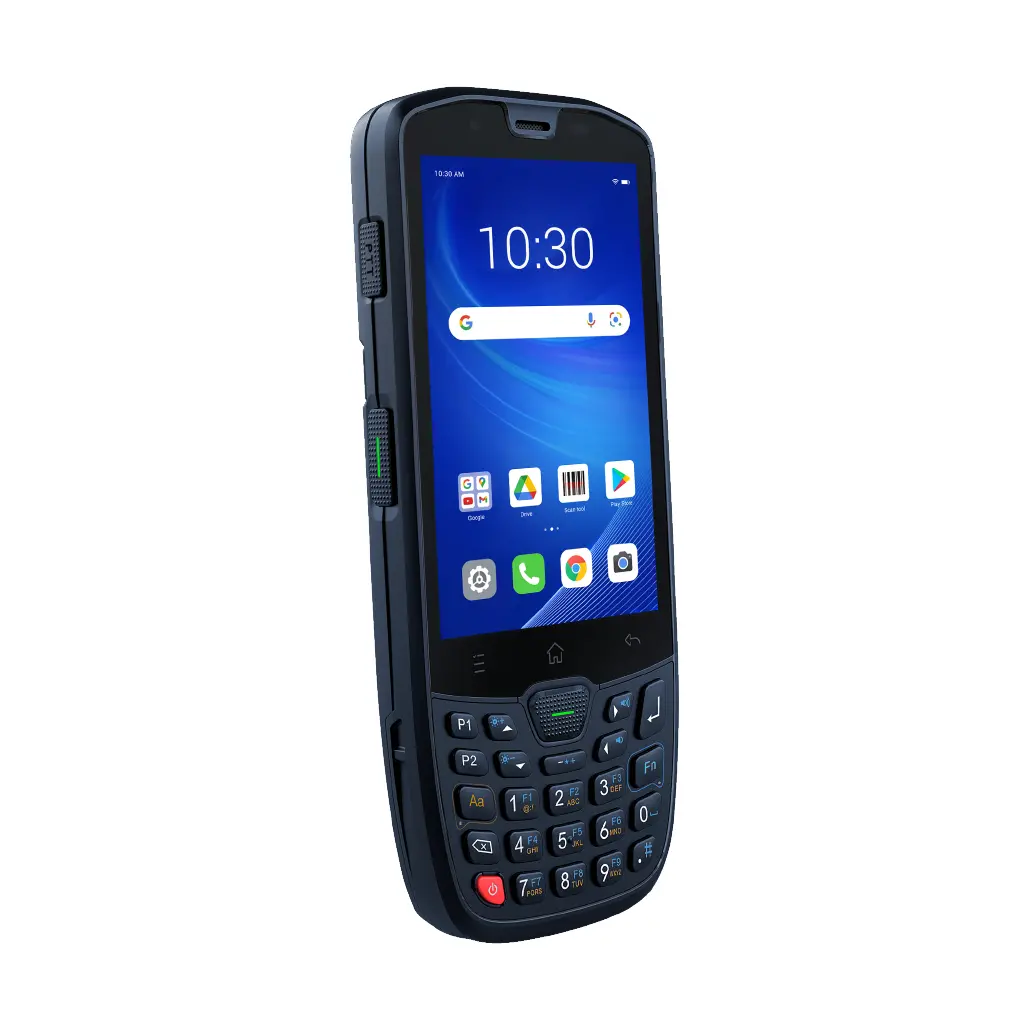

AUTOID 10 Handheld Mobile Computer

  • CPU: Qualcomm octa-core, 2.0 Ghz
  • Display: 5.5-inch, HD resolution
  • Memory (RAM/ROM): 4 GB/64 GB (Standard SKU), 6 GB/64 GB
  • Power: Standard 5000 mAh. extended 6000 mAh
  • Weight: 9 oz./255 g (with 5000 mAh battery), 9.8 oz./279 g (with 6000 mAh battery)
  • Drop Specifications: 4.9 ft./ 2m drops to concret
  • Sealing: IP68

A new platform will combine powerful "Core" capabilities with fast and accurate AI scanning. Design the battery back cover so that it is easy to replace battery. Furthermore, the new Wi-Fi6 Ready Technology brings a smooth communication experience. A long standby battery is a real challenge, escorting the continuous operation strength for two shifts for the frontline work. With the highest level of protection, it's easy to handle when it comes to water, dust, and falls. It's designed to enhance human-computer interactions in several ways, including more precise reminders and a more intuitive terminal operation. Furthermore, it also supports scanning options for standard and extended ranges to meet the needs of a wide range of customers.

Features

● Qualcomm octa core, WIFI6 Ready, 2.4G+5G dual band WIFI, AI 1.15 TOPS, UFS flash.

● MU-MIMO, power saving optimization, easy support up to 16 hours continuous scanning.

● Body reinforced design and ID process keys with backlit which support more than 5 years life time.

● Extend range scanner up to 10m range and DPM reading specialist with led reading status prompt.

AUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile ComputerAUTOID 10 Handheld Mobile Computer

Specifications
Physical Characteristics
Dimensions
6.3 in. L x 2.6 in. W x 0.8 in. H
160.34 mm L x 67.02 mm W x 19.5 mm H
Weight
9.5oz./268g (include battery)
Display
4.0 in. IPS screen (800 x 480)
Touch Panel
Capacitive touch, supporting wet hand mode and thick glove mode
Power
Detachable 5360mAh Li-ion rechargeable battery with hot-swap
50mAh Li-ion spare battery
Expansion Slot
Micro SD card, compatible up to 128GB
Interface / Communication
Support Type-C, support OTG
Notifications
Sound, vibrator, LED light indication
Keypad
27 keys: front key*24, side scan key*2, PTT key*1 (inner light-transmitting industrial IMD keyboard)
Voice and Audio
Built-in single loudspeaker, built-in dual microphone, Type-C support earphone
Performance Characteristics
CPU
Qualcomm Octa-core 2.0GHz
Operating System
Android 11, GMS with AER
Memory
4GB LPDDR4 RAM / 64GB UFS2.1 ROM
User Environment
Operating Temp.
-4 °F to 122 °F / -20 °C to +50 °C
Storage Temp.
Battery included: -40 °F to 140 °F / -40 °C to +60 °C
Battery excluded: -40 °F to 158 °F / -40 °C to +70 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
Multiple 5.8 ft. / 2m drops to marble across the operating temperature range
Tumble Spec.
1000 rounds of tumble from 1.6 ft./0.5 m equals to 2000 impacts
Sealing
IP67
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Optical sensor, proximity sensor, gravity sensor, gyroscope, e-compass
Data Capture
Scanning
Honeywell SR 2D scan engine
Zebra SE5500 2D scan engine
Camera scanning
Camera
Front: 5 MP fixed focus, 2592*1944 (taking photo)
Rear: 13 MP Auto-foucs, support flashlight, can be used for lighting, 4208*3120 (taking photo), 1080P@30fps (making video)
NFC
Supports tags ISO15693, ISO14443A/B (without encryption protocol), ISO14443A with encryption protocol (Mifare one S50,S70 and compatible cards); supports NFC protocol
Wireless Connectivity
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Working Channel
CH1~CH13, CH34-CH165
Security of WLAN
Supports OPEN, WEP, WPA2-PSK (TKIP+AES), WPA3, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, etc,
WWAN Radio
Refer to the specifications for detailed parameters
GPS
Refer to the specifications for detailed parameters
WPAN-Bluetooth
Bluetooth 5.1 (compatible with BLE)
Accessories
Standard
Power adapter, USB cable, battery, hand strap
Additional
4-Slot battery charger, single device charging cradle with one spare battery charging slot, 5-slot charging cradle, pistol grip, multifunctional bag, touch pen, tempered glass screen protector, device protect cover
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11
System Programming Environment
Eclipse, android studio
