Dimensions
Standard battery model:
6.1 in. L x 3 in. W x 0.5 in. H
156 mm L x 76 mm W x 13.9 mm H
6000mAh battery model:
6.1 in. L x 3 in. W x 0.6 in. H
156 mm L x 76 mm W x 16.4 mm H
Weight
9.0 oz./255 g (5000mAh model)
9.8 oz./279 g (6000mAh model)

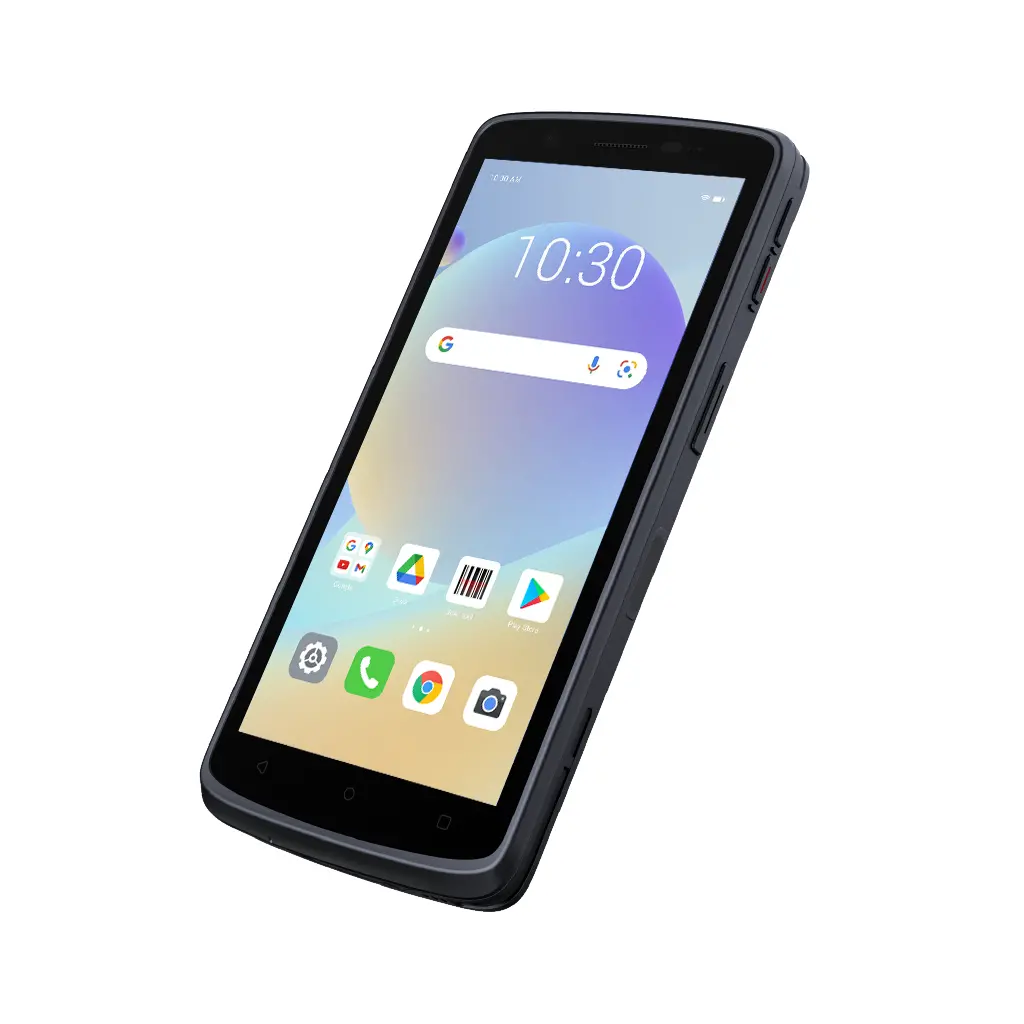

Display
5.5 in. color HD (720 x 1440)
Touch Panel
Capacitive touch, supporting wet hand mode and glove mode
Power
Detachable 5000mAh Li-ion rechargeable battery with hot-swap, optional 6000mAh
40mAh Li-ion spare battery
Expansion Slot
Maximum compatible storage: 128GB
Interface / Communication
Waterproof Type-C USB interface, supporting Type-C earphone, USB2.0 HighSpeed, OTG and fast charge nano / TF card, card slot with two out of three
Notifications
Sound, vibrator, LED light indication
Fingerprint Identification
Support
Keypad
Volume +/ - button, Power ON/OFF button, left scan button, right scan button, custom button, virtual on-screen button (return button, home button, menu button)
Voice and Audio
Speaker, dual microphones, PTT voice (Internal speaker and bluetooth wireless headset support)
Performance Characteristics

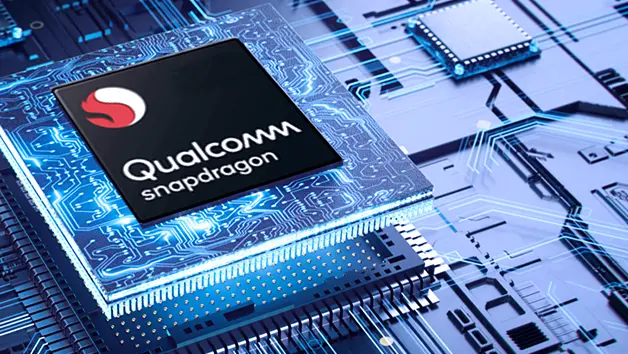

CPU
Qualcomm Octa-core 2.0GHz
Operating System
Android 11, GMS with AER certified
Memory
4GB RAM/64 GB flash memory;
6GB RAM/64 GB flash memory (Optional)
Operating Temp.
-4 °F to 131 °F / -20 °C to +55 °C
Storage Temp.
Battery included: -40 °F to 158 °F / -40 °C to +70 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
4.9 ft. /1.5 m drops to concrete at room temperature
Tumble Spec.
1000 1.6 ft./0.5 m tumbles
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
G-sensor, light sensor, proximity sensor, electronic compass, gyroscope
Scanning
Honeywell SR 2D barcode scanner
Honeywell N6803FR
Camera scanning

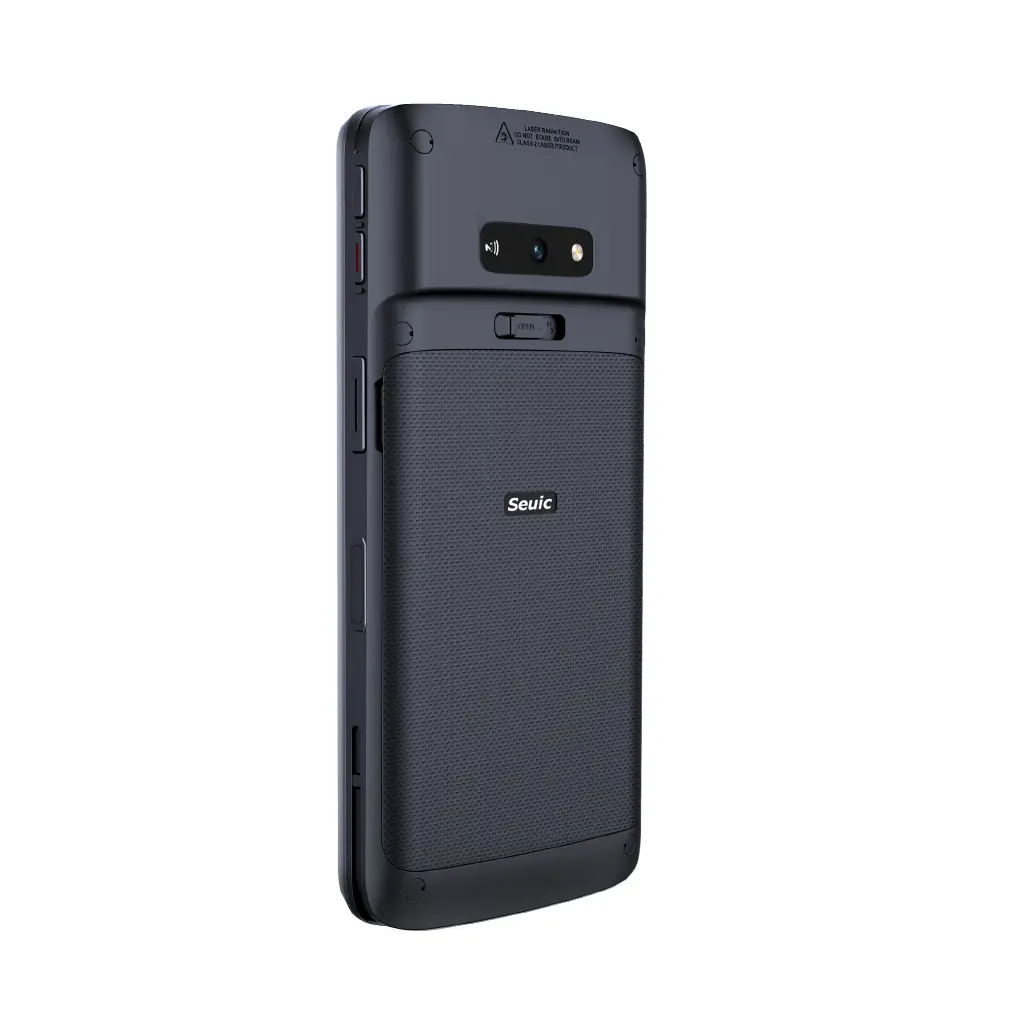

Camera
Front: 5 MP
Rear: 13MP autofocus, flash LED with flashlight mode, PDAF
NFC
Refer to the specifications for detailed parameters
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Frequency Range
Depending on the country (region):
2.4GHz: 2.412GHz - 2.472GHz
5GHz: 5.180GHz - 5.825GHz
WLAN-Working Channel
CH1~CH13, CH36-CH140, CH149~CH165
Security of WLAN
Refer to the specifications for detailed parameters
WWAN Radio
Refer to the specifications for detailed parameters
GPS
GPS+GLONASS+ Beidou, supporting AGPS
GPS: L1+L5(1.575GHz)
Beidou: B1(1.561GHz)
GLONASS: L1(1.602GHz)
WPAN-Bluetooth
Bluetooth 5.1 (supports BLE)
Standard
Power adapter(18W), USB cable, wrist lanyard
Additional
Protective case (with hand strap), single device charging cradle with one spare battery charging slot, 5-slot device charging cradle, 4-slot battery charger, pistol grip
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11
System Programming Environment
Eclipse, android studio
*
