Complete Guide to IP Ratings for Industrial Mobile Computers: Selecting the Most Reliable Rugged Devices for Harsh Environments​

Imagine: conducting inventory in a dusty warehouse, only to have a scanner fail due to airborne particles; performing quality checks in a humid workshop, with splashed liquids causing a terminal screen to malfunction; or conducting outdoor inspections in extreme heat or cold, with devices shutting down due to sudden temperature changes... For factory managers, warehouse supervisors, logistics dispatchers, or field inspectors, device failure is not just a repair cost but also leads to production line stoppages, order delays, data loss, and even safety risks.

This is precisely why "ruggedness" is a core value of industrial mobile computers. Among various protection indicators, the IP (Ingress Protection) rating is the most critical and internationally recognized standard for measuring a device's ability to resist the intrusion of solid objects (e.g., dust) and liquids (e.g., water). Understanding IP ratings means understanding the environments in which your device can "survive" and "operate."

This article serves as your ultimate guide, not only clearly explaining IP rating standards but also combining real industrial scenarios and detailing the protection design of SEUIC products. Finally, it provides an actionable selection strategy to ensure your technological investment is capable of meeting real-world challenges.

1. Foundation Analysis: Thoroughly Understanding IP Rating Codes

IP rating codes typically consist of "IP" followed by two digits (e.g., IP65), and sometimes additional letters. Each digit has a specific meaning, and understanding them is the first step to making the right choice.

1.1 First Digit: Dust Protection Level (Solid Object Protection)

It indicates the level of protection against solid particles (e.g., dust, tools, fingers). The rating ranges from 0 to 6.

IP0X: No special protection.

IP1X-IP4X: Protects against solid objects of varying sizes (e.g., hands or tools >50mm, >12.5mm, wires >1mm).

IP5X (Dust Protected): A critical rating. It does not completely prevent dust ingress, but the amount of dust that enters is insufficient to interfere with normal operation. Suitable for most dusty industrial environments.

IP6X (Dust Tight): The highest dust protection level. Completely prevents dust ingress. Suitable for dusty or powdery environments, such as cement plants, flour processing, and mines.

1.2 Second Digit: Water Protection Level (Liquid Ingress Protection)

It indicates the level of protection against water. The rating ranges from 0 to 9K, with levels 5-8 being common for industrial equipment.

IPX0: No protection.

IPX4 (Splash Resistant): Protects against water splashes from any direction. Suitable for indoor environments where occasional water splashes may occur.

IPX5 (Water Jet Resistant): Protects against water jets from any direction. Can withstand low-pressure water spray, suitable for devices that require frequent cleaning (e.g., food processing, pharmaceuticals).

IPX6 (Powerful Water Jet Resistant): Protects against powerful water jets from any direction. Can withstand high-pressure water spray.

IPX7 (Immersion Resistant up to 1m): An important transitional rating. The device can be immersed in water for a short time under specified conditions (typically 1 meter depth for 30 minutes). Suitable for scenarios where accidental submersion may occur.

IPX8 (Continuous Immersion Resistant): The device can be continuously immersed in water under conditions agreed upon by the manufacturer and user. Note: IPX8 test conditions are typically more stringent than IPX7, but specific depth and duration are defined by the manufacturer. This is a common requirement for outdoor operations and deep-cleaning environments.

IPX9K (High-Temperature/High-Pressure Water Jet Resistant): One of the highest waterproof ratings, capable of withstanding close-range, high-pressure, high-temperature water/steam cleaning. Commonly used in industries requiring deep cleaning and sterilization (e.g., high-end food processing, heavy-duty vehicle cleaning stations).

Key Point: IP ratings are not reversible. For example, an IP68-rated device may not meet IP66 requirements (as IP66 testing involves powerful water jets, while IP68 testing involves static water pressure). Many high-quality industrial devices are labeled with dual ratings like IP65/IP67 or IP66/IP68, indicating they have passed tests under different criteria for more comprehensive protection.

2. Practical Scenarios: What Level of Protection Does Your Environment Require?

After understanding the standards, we need to map them to real-world work scenarios. Below is a detailed analysis for target audiences:

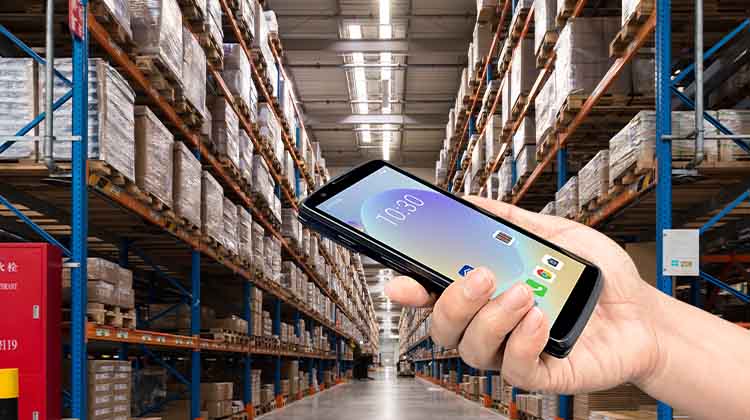

2.1 Warehousing, Logistics, and Retail Inventory

Typical environments: Indoor warehouses, distribution centers, supermarket aisles.

Main threats: Dust (shelf accumulation), occasional drops, condensation (moving in/out of cold storage). In cold chain environments, low-temperature condensation must also be addressed.

Recommended IP rating: IP54 is the basic requirement. For warehouses with cleaning needs or high dust levels, IP65 is a safer choice, allowing direct water cleaning. For frequent movement in/out of cold storage, IP65/IP67 devices that can withstand condensation and temperature changes are advisable.

2.2 Manufacturing and Workshop Operations

Typical environments: Production lines, assembly workshops, quality inspection areas, machining zones.

Main threats: Metal debris/oil stains, coolant/lubricant splashes, high-pressure water cleaning (equipment cleaning), continuous vibration.

Recommended IP rating: IP54/IP65 may suffice for general electronic assembly. However, for machining, stamping, food and beverage, and chemical environments, IP65/IP67 is standard. For devices requiring deep cleaning (e.g., meat processing, pharmaceutical cleanrooms), IP66/IP67 or IP69K is essential.

2.3 Outdoor and Field Services

Typical environments: Utility meter reading (water, electricity, gas), transportation, construction sites, agriculture, forestry, government field enforcement.

Main threats: Rain, snow, wind, sand, accidental submersion (puddles, rivers), extreme temperatures, high humidity.

Recommended IP rating: IP65 is the absolute minimum. For scenarios involving heavy rain or accidental submersion (e.g., port logistics, water inspection), IP67/IP68 is necessary. Additionally, consider wide temperature operating ranges (e.g., -20°C to 60°C) and MIL-STD-810H drop and shock resistance standards.

2.4 Medical and Special Industries

Typical environments: Hospital wards, pharmacies, laboratories.

Main threats: Frequent disinfectant spraying and wiping, blood or bodily fluid splashes, stringent cleanliness requirements.

Recommended IP rating: IP54 or higher to resist liquid disinfectants. IP65 is a better choice, allowing thorough wash-down sterilization. The housing material should also resist corrosive disinfectants like alcohol.

3. In-Depth Analysis of IP Protection Design in SEUIC's Product Matrix

As a long-established manufacturer of rugged mobile computers, SEUIC has developed a full range of protection solutions tailored to different scenarios. Below is a detailed IP protection analysis based on product lines:

3.1 Cold Chain Specific Devices

Representative product: AUTOID Q7-(Cold) Handheld Terminal, integrates intelligent heating and anti-fogging features to ensure reliable scanning at temperatures as low as -25°C.

IP rating: IP65, dust and water jet resistant, passed over 60 reliability tests in CNAS laboratories.

Application scenarios: Focused on cold chain logistics and cold storage operations, used for goods receiving, storage scanning, etc., reducing climbing risks for personnel and ensuring continuity and safety in the cold chain.

3.2 Smart Handheld Terminals

Representative product: AUTOID 10 Handheld Mobile Computer, features ergonomic design with golden ratio, supports one-handed operation and AI scanning technology.

IP rating: IP67, dust and water resistant, can withstand drops from up to 2 meters.

Application scenarios: Warehouse management, logistics sorting, inventory counting; improves operational efficiency and accuracy, suitable for high-intensity environments like manufacturing and e-commerce logistics.

3.3 5G-Connected Devices

Representative product: CRUISE2 5G Rugged Mobile Computer, equipped with Qualcomm 4490 CPU and Wi-Fi 6E technology, supports high-speed data transmission.

IP rating: IP68, withstands drops from 1.5 meters, rugged design provides dual protection, suitable for harsh environments.

Application scenarios: Covers manufacturing, utilities, express logistics, and retail; used in Shanghai Metro for equipment inspection and real-time communication, improving work efficiency and network stability.

4. Selection Guide: Five Steps to Choose the Right Rugged Terminal

Selecting a device should not solely rely on the IP rating number but involve a systematic evaluation. Follow these five steps:

Step 1: Environmental Threat Assessment Checklist​

Type and concentration of dust/particles? (Determines dust rating: 5X or 6X)

Type of liquid and contact method? (Mist, splashes, jets, or immersion? Determines water rating: 4X to 8X/9K)

Operating temperature range? (Wide-temperature capability)

Drop height and surface material? (Impact and shock resistance needs)

Frequent disinfection required? (Consider chemical resistance)

Step 2: Match IP Rating to Scenario​

Based on the Step 1 checklist, refer to the scenario analysis in Part 2 to preliminarily determine the required IP rating range.

Step 3: Beyond IP—Comprehensive Ruggedness Considerations​

Drop specifications: Ensure the device passes relevant drop tests like MIL-STD-810H and check the specific height (e.g., 1.2m, 1.5m, 1.8m).

Wide-temperature operation: Ensure stable performance at your environment’s minimum and maximum temperatures.

Screen visibility: For outdoor use, consider high-brightness screens and sunlight-readable technology; for gloved operation, ensure touchscreen compatibility with gloves or physical keyboards.

Battery performance: Battery capacity and hot-swappability are critical for long operations.

Step 4: Verification and Testing​

Request formal test reports or certification documents from suppliers.

If possible, request samples for on-site or simulated environment testing—the most direct way to verify protection performance.

Step 5: Avoid Common Selection Pitfalls​

Pitfall 1: "IP68 is the best, just choose it blindly": Over-protection means higher costs and potential sacrifices in portability. IP68 may be unnecessary for indoor warehouses.

Pitfall 2: "Focus only on IP, ignore other factors": IP does not cover drop, shock, or extreme temperature resistance. Combine with other standards for comprehensive evaluation.

Pitfall 3: "Neglect cleaning and maintenance": Even waterproof devices require proper cleaning and maintenance to preserve seal longevity.

5. Future Trends: Intelligence, Connectivity, and Enhanced Environmental Adaptability

Protection technologies for industrial mobile computers continue to evolve:

Materials Science: Newer, lighter, stronger, and more chemically resistant materials are used in housings.

Sealing Technology: More precise sealing techniques enable higher protection levels while maintaining slim designs.

Thermal Management: Efficient heat dissipation in sealed environments is a new challenge as device computing power increases.

Integrated Design: Protection is no longer just about the "housing" but a systematic engineering effort involving internal component layout and PCB conformal coating.

When selecting mobile computers for industrial environments, IP ratings are foundational but not the sole factor. They provide a clear, standardized "language" to quantify environmental threats and match device capabilities. Choosing a properly protected industrial mobile computer is a long-term investment in operational continuity, data assets, and employee efficiency. It should not be your "Achilles' heel" in harsh environments but a reliable partner in enhancing efficiency and ensuring safety.
