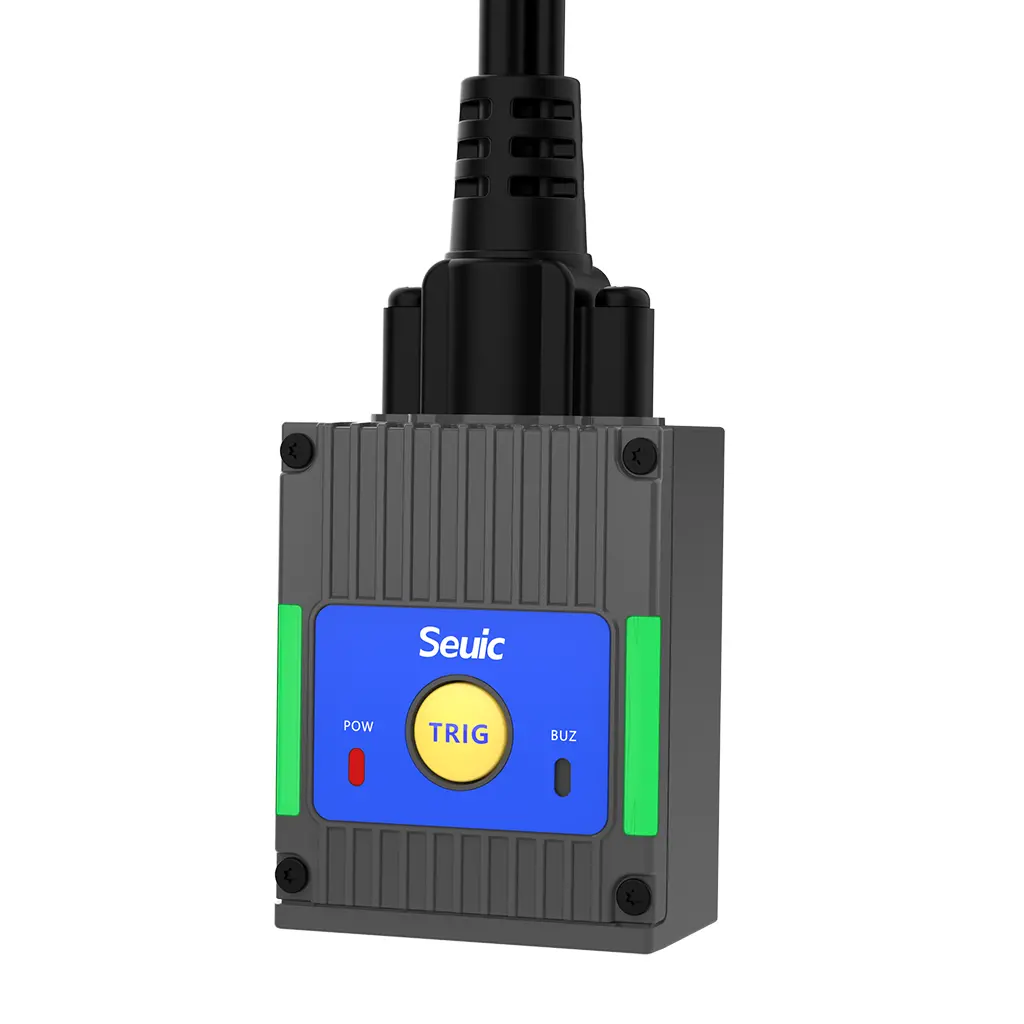

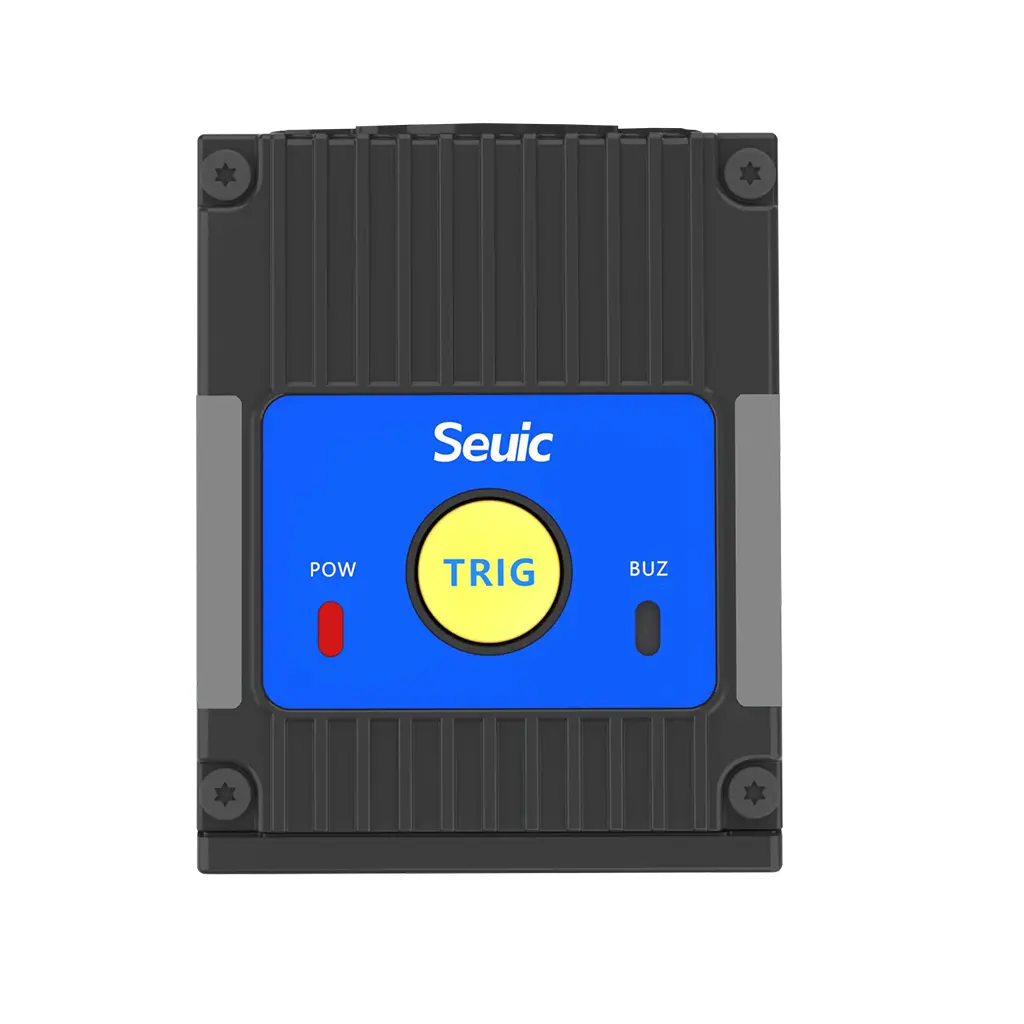

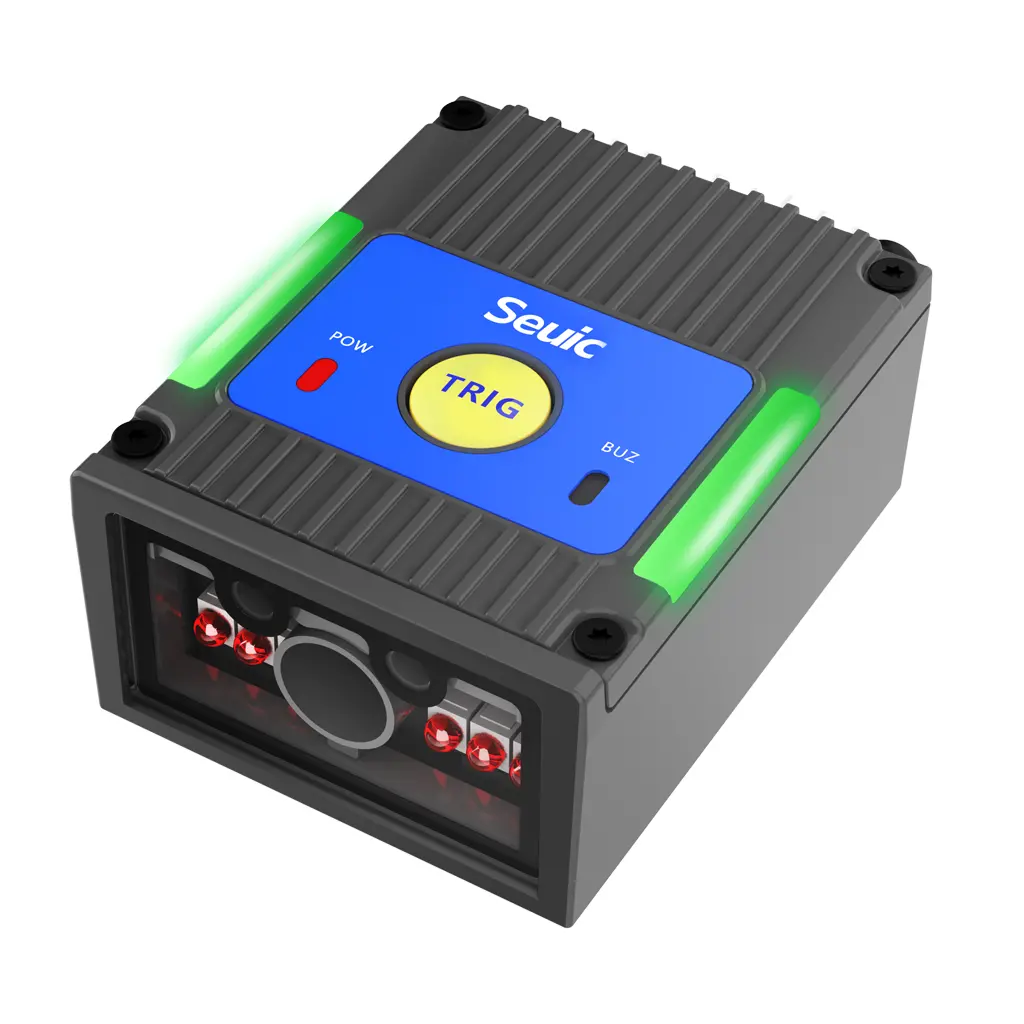

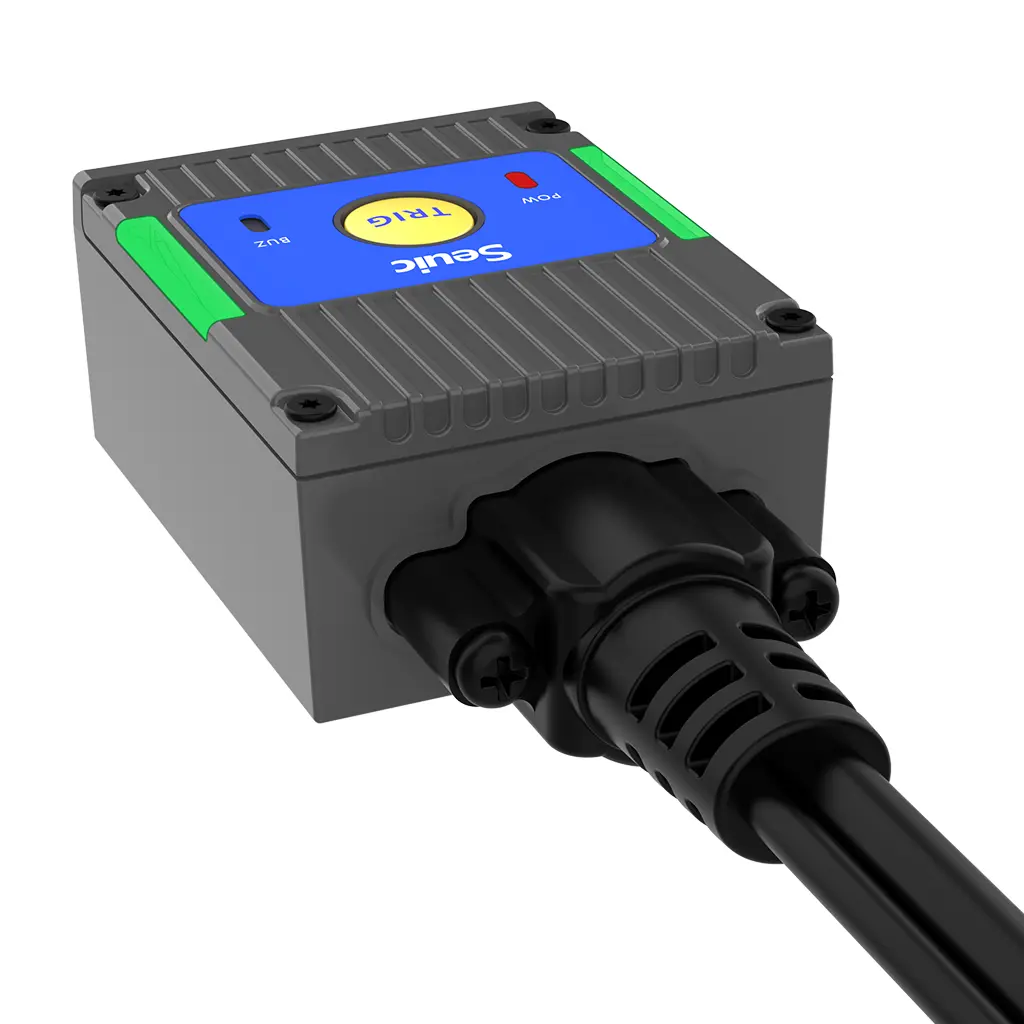

X3G Fixed Barcode Scanner

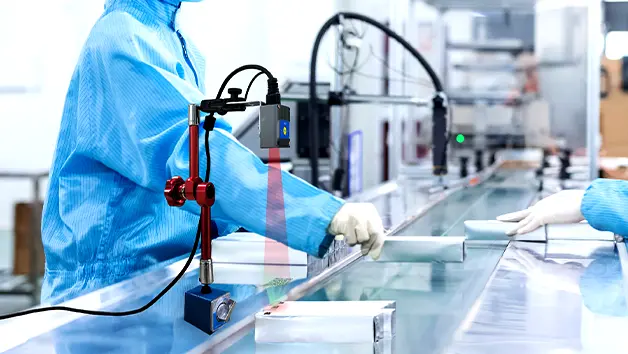

Seuic X3G it is a plug-and-play general-purpose stationary code reader designed for semi-automated data collection. The high sensitivity scanning head design concept makes automatic collection more sensitive, prevents slow reading and missed scanning, and can easily read many types of barcodes and 2D codes for electronic parts, product packaging, paper tickets, cell phone screens, and more.

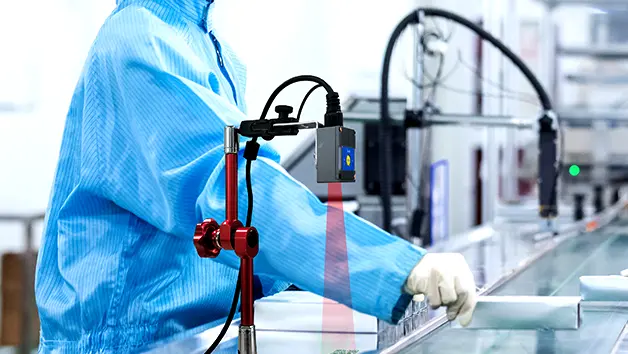

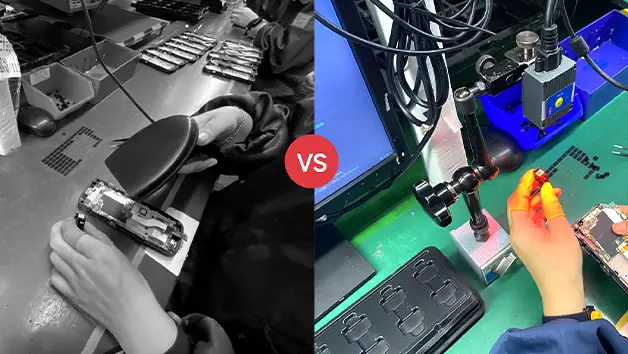

● Free your hands: replace the handheld scanner, that is, put and scan.

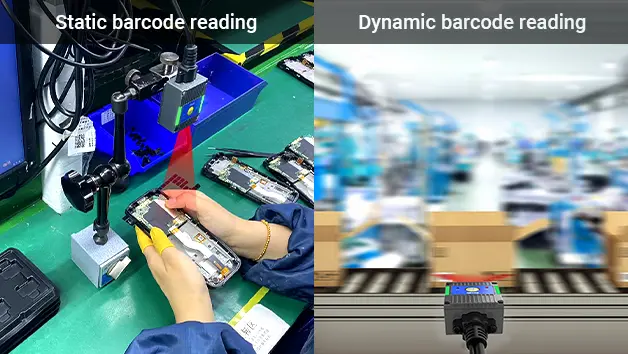

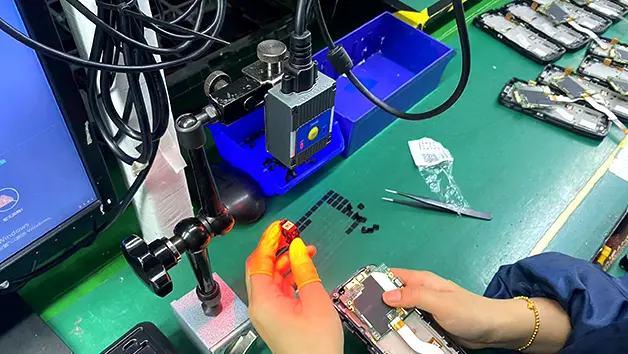

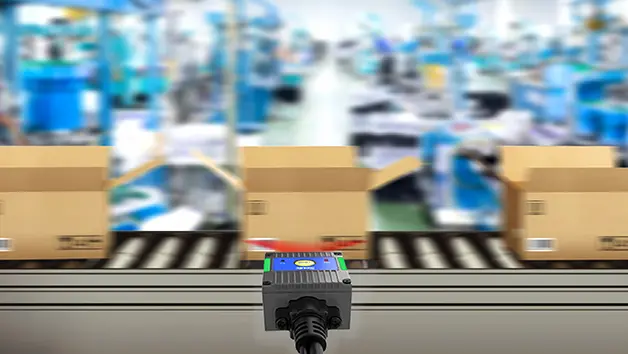

● High sensitive scan engine, support both static scanning and dynamic scanning with slow flow.

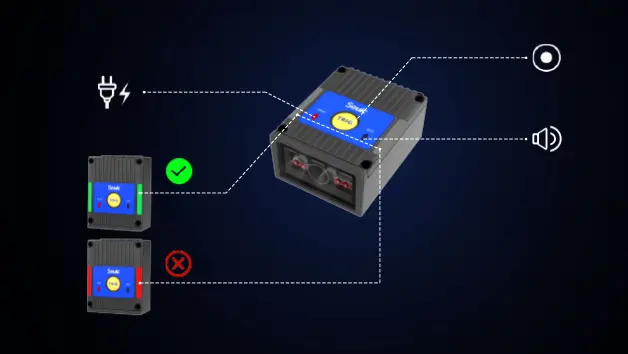

● 3.3mil decoding ability with dynamic prompt LED strip, ultra small alloy body for simple integration.

X3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode Scanner

Image Sensors
1280 * 800 COMS sensor with global shutter
Light Source
High-intensity red LED
Red linear collimator
Image Frame
Maximum 60fps
Code Support
1D: All the standard 1D barcode
2D: DataMatrix(ECC200), QR code, Micro QR, PDF417, MicroPDF417, Aztec etc.
Omnidirectional barcoding reading
1D: 3.3mil
2D: 5.0mil
Standard Range for Typical Symbols-HD
3.3mil Code 39: 40mm ~ 80mm
10mil Code 39: 50mm ~ 150mm
10mil Datamatrix: 30mm ~ 130mm
ENA-13 100%: 30mm ~ 165mm
Standard Range for Typical Symbols-SR
10mil Code 39: 50mm ~ 200mm
10mil Datamatrix: 35mm ~ 250mm
ENA-13 100%: 30mm ~ 300mm
Field of View
46° horizontal, 29° vertical
Trigger Mode
Manual trigger, presentation mode, continuous trigger mode, serial port command
Print Contrast
Communication Interface
USB, RS-232
40mm x 50.3mm x 23mm
About 34g
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 70℃
5% to 95% RH non-condensing
Environmental Sealing
Shell Material
Aluminium alloy+ABS
DC 5V±5%; 300 mA ±5% (Typical), 450 mA ±5% (Maximum)
