Solving Wi-Fi Challenges in Automated Storage and Retrieval Systems (AS/RS): How the AUTOID Q7 Ensures Zero Network Interruption

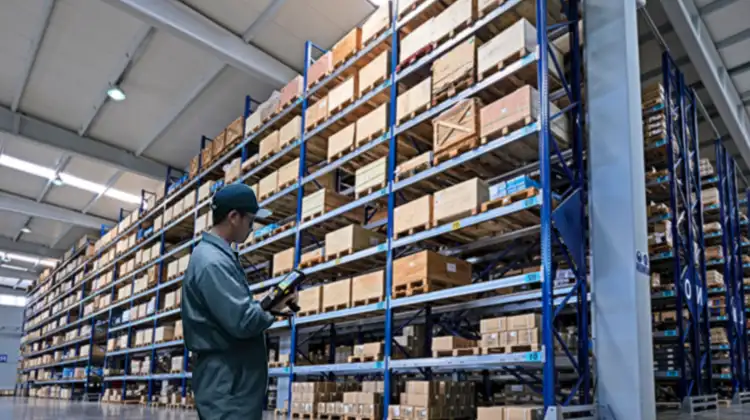

Imagine this scenario: in an aisle of an AS/RS with shelves over 10 meters high, your employee is operating a handheld terminal for inventory counting or order picking. A scan command is issued, but the terminal starts buffering due to a weak Wi-Fi signal; or while moving from Zone A to Zone B, the device loses connection during the switch between Access Points (APs), causing scan data to fail real-time upload, or even requiring a network restart or system re-login. This Wi-Fi signal instability in AS/RS is not just simple network lag; it directly leads to a sharp drop in operational efficiency, data delays or errors, and ultimately affects the entire supply chain's responsiveness and inventory accuracy. This is a significant concern not only for the IT department but also for warehouse managers, logistics supervisors, and operations directors. Today, we will delve into this pain point and reveal how the SEUIC AUTOID Q7-(Grip) handheld mobile terminal provides reliable "zero network interruption" assurance for complex industrial environments through its core enhanced PA (Power Amplifier) design and network optimization.

1. Why is the Wireless Network in AS/RS So "Fragile"?

In high-bay AS/RS environments, achieving stable wireless network coverage faces multiple severe challenges, far more complex than in offices or ordinary warehouses:

Complex Physical Structure: Dense high-bay racks form a natural "metal jungle," causing severe blocking, reflection, and multipath effects on wireless signals, leading to coverage dead zones and rapid signal attenuation.

High Mobility and Roaming Requirements: Employees and material handling equipment (like forklifts) are constantly moving. Handheld terminals need to switch (signal roaming) frequently and quickly between multiple APs deployed in different areas. One unsuccessful AP handover can cause business interruption lasting several seconds or even longer.

Distance and Height Challenges: When scanning barcodes on the top shelves, the distance and angle between the terminal and the AP can be significant, posing extreme demands on the device's signal reception sensitivity (Rx) and transmission power (Tx).

Numerous Environmental Interferences: Large machinery, metal goods, other wireless devices, etc., can all generate interference, further deteriorating the wireless environment.

The combination of these factors makes it difficult for ordinary consumer-grade or some industrial-grade terminals to maintain stable connections. The "last meter" of data collection becomes the "most unstable meter."

2. AUTOID Q7-(Grip)'s Solution: Building a Seamless Data Link with Enhanced PA as the Core

Facing the aforementioned challenges, the AUTOID Q7-(Grip) handheld mobile scanning terminal is not merely a scanning device; it is a wireless communication terminal deeply optimized for industrial mobile data collection. Its solution is systematically designed around network stability, with the enhanced PA design being the cornerstone of ensuring zero network interruption.

2.1 Enhanced PA (Power Amplifier) Design, Strengthening Signal Transmission and Reception Capability

Ordinary devices have limited Wi-Fi module power. At long distances or after signals penetrate obstacles, the transmission signal is weak, and the reception signal is poor. The built-in enhanced PA in the AUTOID Q7-(Grip) is like equipping the wireless signal with a "power amplifier" and a "high-sensitivity receiver."

• Enhanced Transmission (Tx): Increases signal transmission power, allowing data packets sent from the terminal to penetrate shelf obstacles more effectively and reach more distant APs, reducing packet loss and retransmission caused by weak signals.
• Improved Reception Sensitivity (Rx): Enhances the ability to receive weak signals, maintaining stable connections even at the warehouse edges or corners by clearly capturing signals from APs.
• Optimized Roaming: Stronger signal transmission and reception capability means the terminal can detect signals from neighboring APs earlier and more stably. This enables intelligent, smooth triggering and completion of AP handover beforethe current AP's signal weakens, achieving true seamless signal roaming and ensuring uninterrupted business continuity.

2.2 Synergy of Multi-Scanning Engines and Network Optimization

Network stability is for real-time data backhaul, and data originates from accurate and fast scanning. The AUTOID Q7-(Grip) designs scanning performance and network stability as an integrated whole.

• Long-Range Scanning Capability: The product supports an optional long-range scanning engine with a maximum scanning distance of 30 meters. This means an operator doesn't need to move around to find a strong signal spot to scan a high barcode; they can complete the collection of distant barcodes from a position with a stable network connection, indirectly reducing reliance on continuous network connectivity in extreme mobility scenarios.
• Workflow Matching: Offers three scanning engine options: standard, mid-range, and long-range. For example, receiving scans at a fixed workstation (standard distance) and inventory counting on high-bay racks while driving a forklift (long-range) have different network demand patterns. Matching hardware allows the terminal to maintain optimal working status, including network connection efficiency, in their respective scenarios.

2.3 Industrial-Grade Reliability, Providing Physical Assurance for Stable Connections

The stability of network connections depends not only on the wireless module but also on the overall reliability of the terminal. A device prone to internal connection loosening due to drops or vibrations cannot have reliable network performance.

• Rugged Design: The AUTOID Q7-(Grip) (including handle) features an enhanced protection design, with particular reinforcement of key areas like the scanning window.
• Excellent Drop Resistance: Can withstand impacts from drops up to 2 meters onto marble flooring. This means that during daily bumps and falls in the warehouse, its internal components like antennas and Wi-Fi modules are maximally protected, avoiding signal attenuation or functional failure caused by physical damage.
• Rigorous Testing: Has passed over 60 reliability tests in SEUIC's professional CNAS-accredited laboratory, ensuring consistent performance in challenging environments like dust, vibration, and extreme temperatures, providing a hardware foundation for 7x24 continuous operation.

3. Which Industries and Scenarios is the AUTOID Q7-(Grip) Suitable For?

This terminal, optimized for solving AS/RS Wi-Fi challenges, has application scenarios far beyond traditional warehousing. It is widely suitable for any field requiring mobile data collection in complex network environments:

Manufacturing & Large Warehouses: Production line material management, high-bay rack management in finished goods warehouses for industries like automotive, home appliances, and textiles.

Retail & Logistics Hubs: Backroom inventory counting in large supermarkets, sorting and parcel tracking in e-commerce fulfillment centers, cross-warehouse operations in third-party logistics (3PL).

Public Utilities & Field Service: Meter inspection for power, gas, and water companies in outdoor/basement settings, where complex building structures pose huge challenges for wireless coverage.

Healthcare: Precise bin management of high-value consumables and medications in large hospital central warehouses and pharmacies.

4. Success Case Study

Nanjing Iron & Steel (NISCO), ranked among the top ten global steel enterprises for technological competitiveness and a Fortune China 500 company, once faced a core operational bottleneck in its modern steel warehouse management due to steel stacks reaching heights of 2-3 meters. The limited recognition distance of traditional scanning equipment made it difficult to read high-level barcodes, leading to delays in inventory data updates. Moreover, manual scanning at height carried safety risks and was inefficient, severely impacting inventory accuracy, material handling efficiency, and production-supply chain coordination. To address this, NISCO deployed the Seuic AUTOID Q7-(Grip) long-range scanning mobile computer solution. This device features an effective scanning range of 30 meters, easily covering standard steel stack heights. Its advanced long-range barcode recognition technology can adapt to the reflectivity and complex environments on steel coil surfaces. Combined with IP67 industrial-grade protection, it ensures stable operation. This solution increased related operational efficiency by 100% compared to previous methods, significantly improving scanning efficiency and data timeliness. While ensuring operational safety, it optimized inventory costs, achieving a key breakthrough in warehouse automation management for the steel industry. For more case details, click here.

In the wave of digital transformation, data is the lifeblood, and the network is the circulatory system. For high-bay AS/RS, large workshops, and complex outdoor environments, the challenges of wireless coverage are real and severe. The value of the AUTOID Q7-(Grip) handheld mobile terminal lies in its construction of a complete "stable data collection" solution from the communication foundation (enhanced PA), the operational layer (multi-mode scanning), to physical protection (industrial-grade reliability). It is not just a scanner; it is an industrial connectivity hub that ensures business flow and information flow are unimpeded in any corner.
