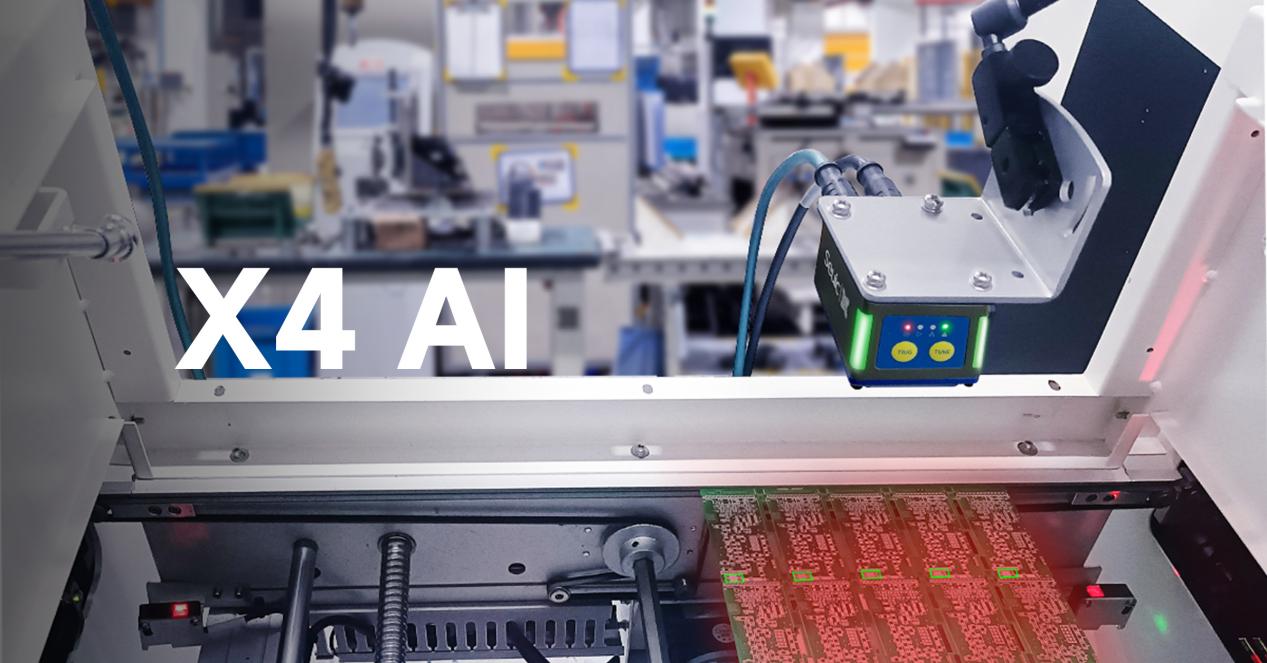

SEUIC X4 AI Code Reader: Solving DPM Code Reading Challenges in PCB Manufacturing

In modern electronics manufacturing, the printed circuit board (PCB) serves as the fundamental carrier of electronic products. The quality control and information traceability capabilities of its production process directly determine the reliability and competitiveness of the end products. Facing increasingly complex processes, miniaturized components, and stringent customer quality traceability requirements, achieving precise traceability throughout the entire PCB process—from cutting, lamination, drilling, plating to testing and assembly—has become a common challenge for the industry. The SEUIC X4 AI Industrial Code Reader, with its exceptional AI vision decoding capabilities and industrial-grade reliability, is becoming a key technological tool for the PCB manufacturing industry to build a full-process quality traceability system and achieve production visualization.

1. Pain Points in PCB Industry Traceability: Why Do Traditional Solutions Fall Short?

Traceability marks on PCB boards face a series of unique and severe challenges, often rendering traditional code reading equipment ineffective:

Diverse Marking Processes, Extremely High Reading Difficulty: Traceability codes might be laser engraved (DPM) on FR-4 substrates, metal surfaces, or solder masks, forming positive/negative codes with very low contrast; they could also be printed on highly reflective copper foil, gold fingers, or ink backgrounds. These codes are susceptible to interference from background textures, varying colors (e.g., green solder mask, black solder mask, blue solder mask), oxidation, scratches, etc., making them typical "complex barcodes."

Harsh Production Environment, High Demands on Equipment: PCB production lines involve chemical solutions, dust, high temperatures (e.g., reflow soldering), and vibration environments, requiring code readers to possess extremely high environmental resistance (IP67 protection rating) and long-term stability.

Fast Production Cycle, Requires Seamless Integration: High-speed SMT lines or automated test equipment require code reading response speeds at the millisecond level, and seamless integration with MES/ERP systems to achieve "read and associate immediately." Any delay or misread can cause production bottlenecks or data chaos.

Difficulty in Full-Process Coverage: The board surface conditions, mark locations, and sizes vary across different processes (inner layer, lamination, drilling, outer layer, surface finish, testing), requiring the code reading solution to possess extremely high adaptability and flexibility.

2. SEUIC X4 AI: An AI Code Reading Solution Born for Complex PCB Scenarios

The SEUIC X4 AI Industrial Code Reader is born to solve the aforementioned challenges. It is not just a hardware device but an intelligent system integrating cutting-edge algorithms and industrial optical design.

2.1 Powerful AI Decoding, Conquering Various "Problem Codes" on PCBs

The device core is equipped with a new AI chip and deep learning algorithms. Trained on massive industrial barcode data, these algorithms are specifically optimized for barcodes commonly found in the PCB industry that are blurry, distorted, have low contrast, or complex backgrounds. Whether it's a QR code with insufficient contrast laser-engraved on a dark solder mask or a reflective code printed on a shiny copper surface, the X4 AI can accurately recognize them, easily handling challenges like positive/negative codes on PCB boards and codes with complex background patterns.

2.2 Plug-and-Play, Achieving "Second-Level Deployment, Zero Debugging" on the Production Line

Traditional code reader deployment is time-consuming and labor-intensive, requiring engineers to repeatedly debug focus and exposure parameters to adapt to different boards. Leveraging its AI algorithm's ability to intelligently and automatically adapt exposure parameters, the X4 AI achieves a revolutionary "plug-and-play" experience. After powering on, the device can automatically and quickly lock onto the barcode and optimize imaging conditions, greatly simplifying the installation and line changeover processes. This reduces deployment time from hours to minutes, significantly enhancing production line flexibility.

2.3 Multi-Scenario Adaptation, Covering the Entire PCB Process Flow

For highly reflective materials: A semi-polarized model is available, which can effectively suppress specular reflection from surfaces like copper foil and plated through-holes, ensuring clear imaging.

Flexible installation and field of view: The compact and rugged body (approx. 220g, IP67 protection) can be easily integrated into different workstations like cutting machines, AOI equipment, flying probe testers, and SMT loaders. Standard and wide-field-of-view models are available to meet diverse needs from close-range precise reading to moving scan lines.

3. Building a Full-Process Quality Traceability and Visualization System for PCBs

Deploying the SEUIC X4 AI Code Reader allows for the establishment of robust data collection points at various key stages of PCB manufacturing, thereby connecting a complete digital traceability chain:

Cutting and Inner Layer Process: After substrate cutting or inner layer pattern transfer, read the traceability code on the board edge or within the board, binding the material batch and initial process parameters.

After Lamination and Drilling: After multi-layer board lamination or drilling, read the outer layer identification, associating the lamination structure and drilling data.

Outer Layer Pattern and Surface Finish: Read the code after plating, etching, and surface finishing (e.g., ENIG, HASL), recording key process history.

Before SMT and Assembly: Scan the code before entering the SMT line to ensure the correct PCB version enters the corresponding placement program, achieving error-proofing.

Testing and Final Inspection: Read the code during flying probe testing, AOI inspection, functional testing, etc., binding all test data (e.g., impedance, continuity, defect images) with the unique identifier of the single board, forming a complete "electronic quality record."

Through automatic data collection and association at the aforementioned nodes, enterprises can build a "production visualization dashboard" in real-time, gaining overall control of WIP status, production progress, and yield distribution. When quality issues occur, reverse traceability to the specific production batch, machine, operator, and even raw material source can be achieved instantly based on the code, enabling precise quality analysis and improvement.

As electronics manufacturing accelerates towards intelligence and precision, reliable data is the lifeblood driving decisions. With its outstanding AI decoding performance, extreme ease of use, and industrial-grade rugged quality, the SEUIC X4 AI Industrial Code Reader provides the PCB manufacturing industry with the key to breaking down data barriers across the entire process. It not only solves the challenge of reading complex marks but also helps enterprises build a transparent, credible, and efficient quality traceability and production visualization system, thereby establishing a core competitive advantage on the path to improving product reliability, reducing quality costs, and enhancing customer confidence.
