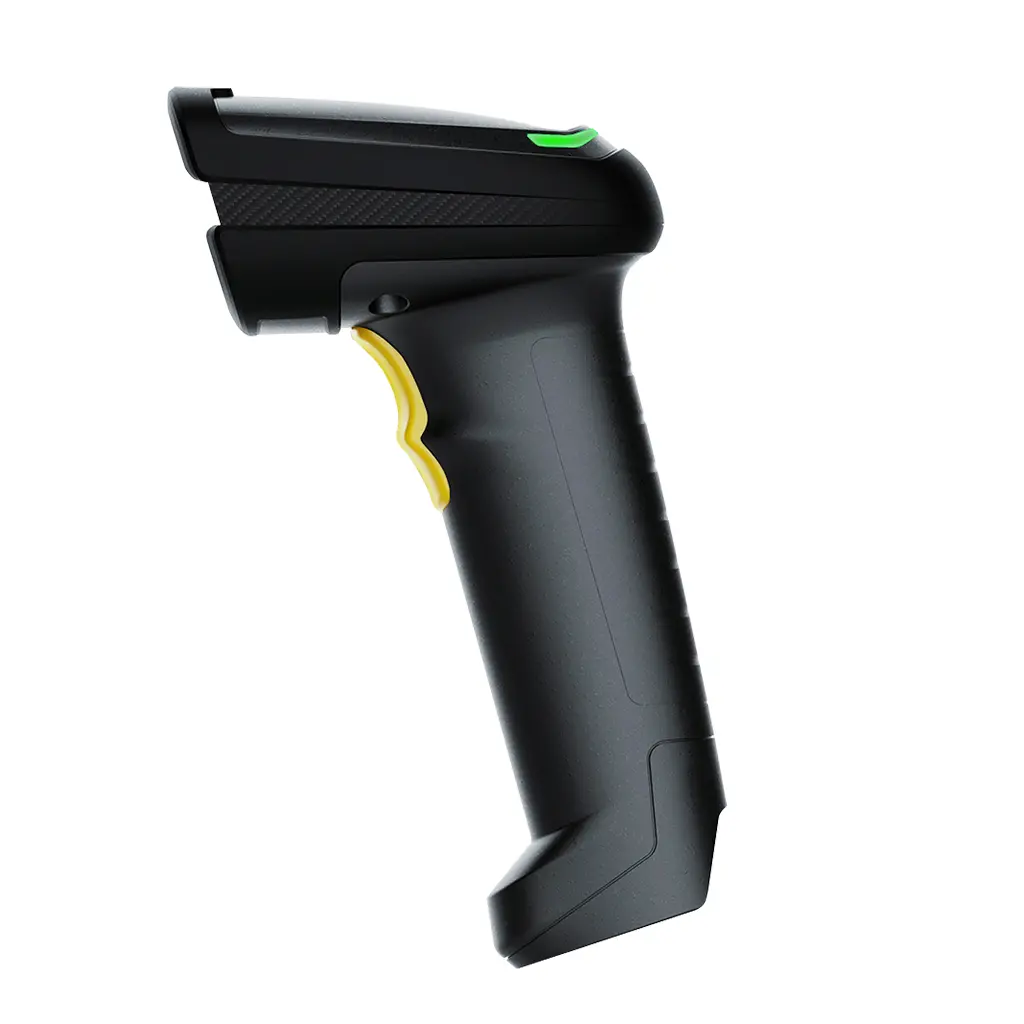

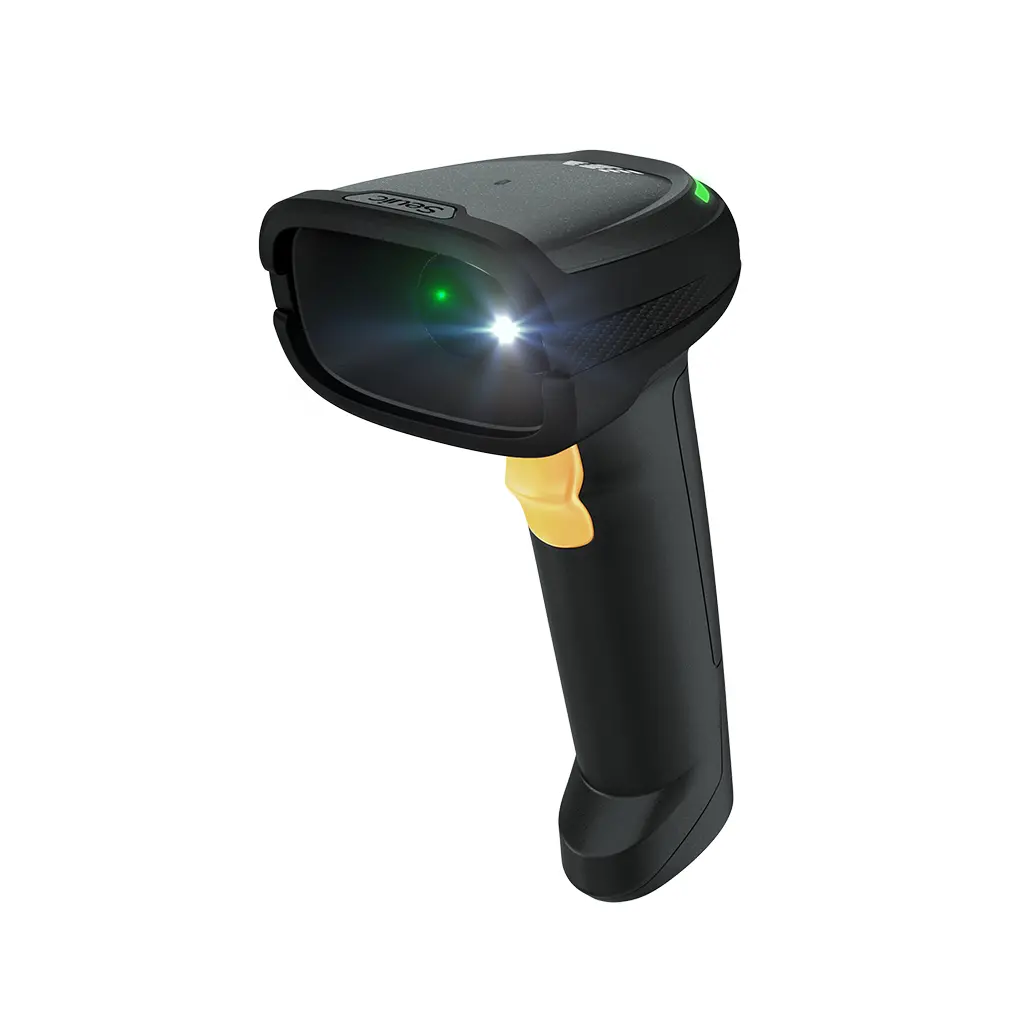

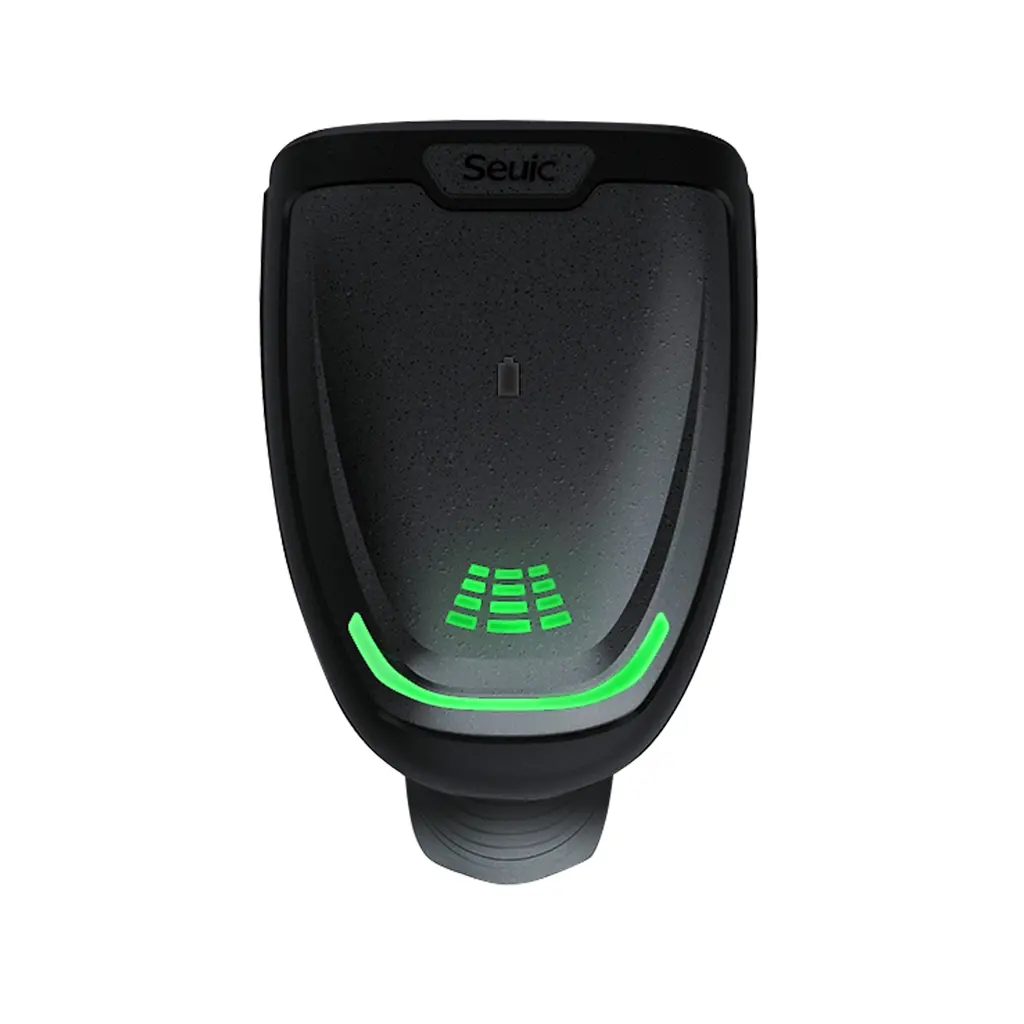

HS220C Area-imaging Wireless Barcode Scanner

  • Image Sensor: 1280 x 1024
  • Illumination: White
  • Resolution: 1D 3 mil; 2D 5 mil
  • Environmental Sealing: IP51
  • Battery Capacity: Rated Capacity:2150mAh; Typical Capacity: 2600mAh
  • Drop Specifications: 4.9 ft./1.5m drops to concrete

HS220C is a versatile wireless scanner for manufacturing, retail, e-commerce, and logistics. It performs well in a variety of scenarios such as automated factory assembly, retail store checkout / inventory, and logistics and warehousing, especially for paper barcodes, wrinkled and distorted commodity codes, and laser-engraved barcodes on printed circuit boards or metal surfaces, HS220C can provide excellent decoding performance and user experience.

Features
● High resolution optical lens for superior scanning of tiny dense codes.

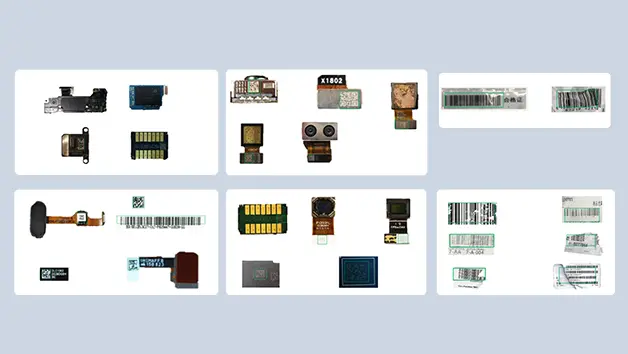

● Scan any barcode on any medium, printed on plastic and metal electronic subcomponents such as PCB boards, memory chips and more.



Specifications
Physical Characteristics
Dimensions
1280 * 1024 COMS sensor with global shutter
Camera Option
High density
Standard Range
Illumination LEDs
White
Aiming
Green LED
Sensor Speed
60fps
Support Symbologies
1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc.
2D: PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, etc.
Scan Angle
Pitch angle ±60° and skew angle ±55°
Scan Density
1D code: 3mil
2D code: 5mil
Standard Range for Typical Symbols
Refer to the specifications for detailed parameters
Vibration Motor
Support
Communication Interface
RS232, USB keyboard, USB COM
Dimension
6.5 in. L × 2.7 in . W × 4.2 in. H
166.2 mm L × 68.5 mm W × 105.5mm H
Weight
7.1oz / About 200g
Operating Temperature
32 °F to 122 °F / 0°C to 50°C
Storage Temperature
-4 °F to 158 °F / -20°C to 70°C
Humidity
5% to 95% RH non-condensing
Environmental Sealing
IP54 (Water and Dust Resistant)
Light Levels
0 to 100,000 Lux
Drop Specification
50 rounds of 4.9 ft. / 1.5m drops across the operating temperature range to concrete
Impact Specification
2000 rounds of 0.5m tumble
Shell Material
Highly resistant industrial plastic
Battery Capacity
Rated Capacity: 2150mAh
Typical Capacity: 2600mAh
Number of Scans
40,000
Charge Time from Empty to Full
5 ~ 6 hours over USB
ESD Protection
±15kV Air discharge, ±8kV direct discharge
Certificates
CE, FCC, RoHS, UN38.3

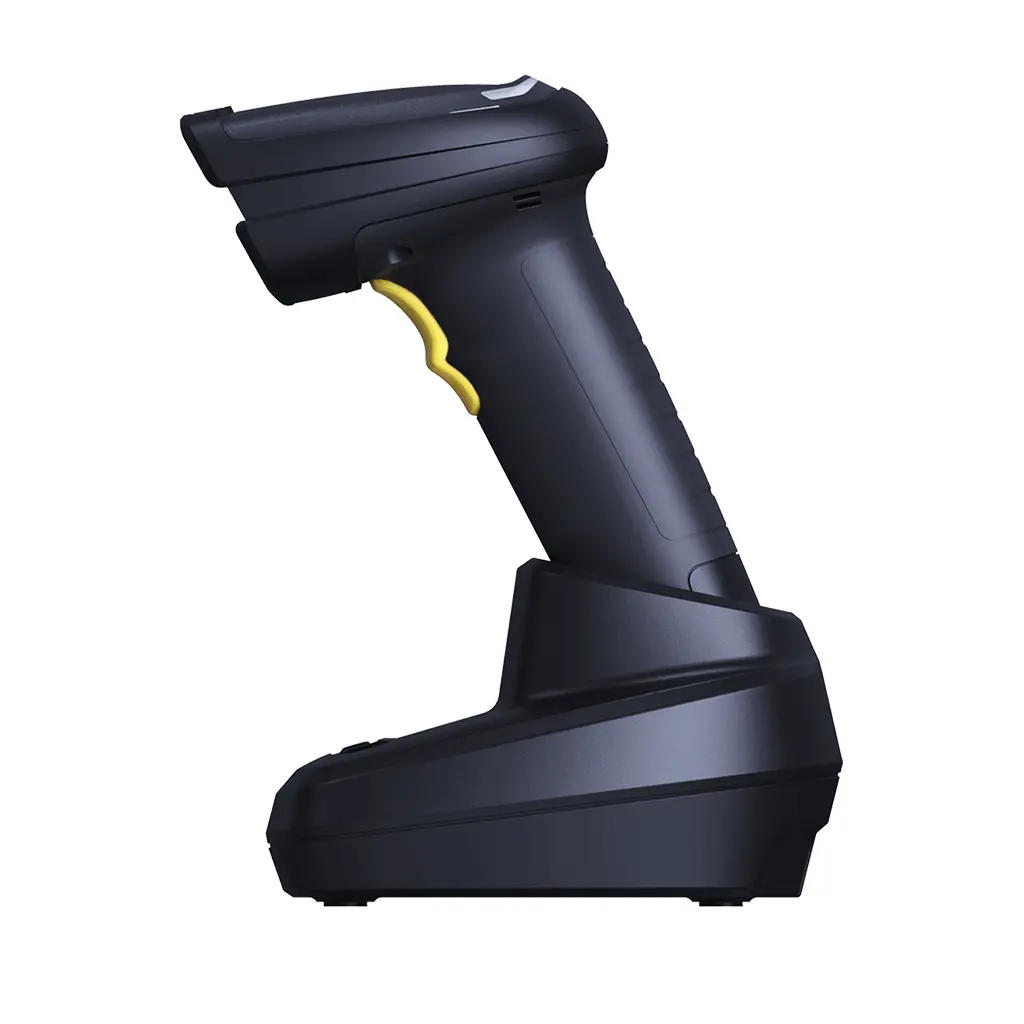

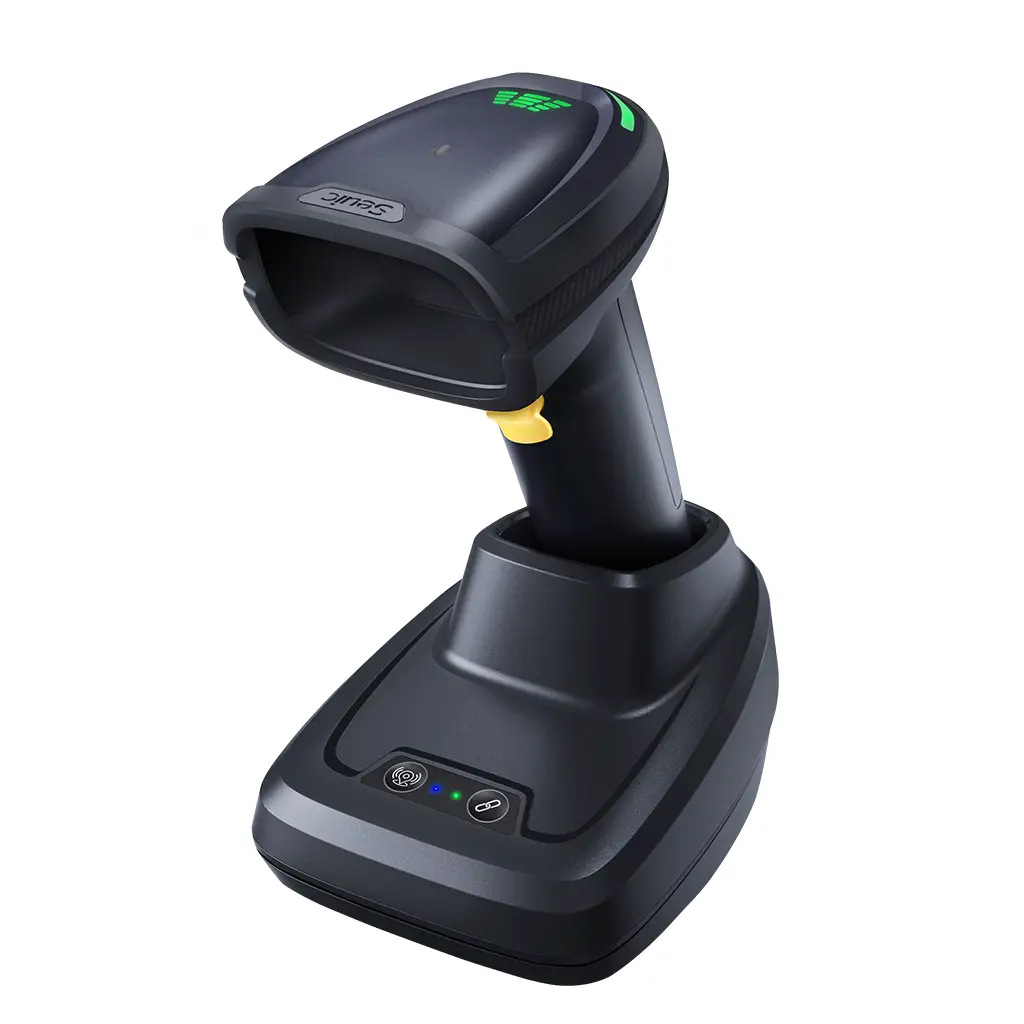

Standard Cradle Specifications
Normal Rated Charging Power
Only USB charge: 2.5W
Dimension
90 * 115 * 75 mm
Weight
167.75g ± 3g
Operating Temperature
32 °F to 122 °F / 0°C to 50°C
Storage Temperature
-4 °F to 158 °F / -20°C to 70°C
Humidity
5% to 95% RH non-condensing
Environmental Sealing
IP51
Mechanical Shock
20 rounds of 3.9 ft. / 1.2m drops across the operating temperature range
Shell Material
Highly resistant industrial plastic
ESD Protection
±15kV Air discharge, ±8kV direct discharge
Certificates
CE, FCC, RoHS
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
