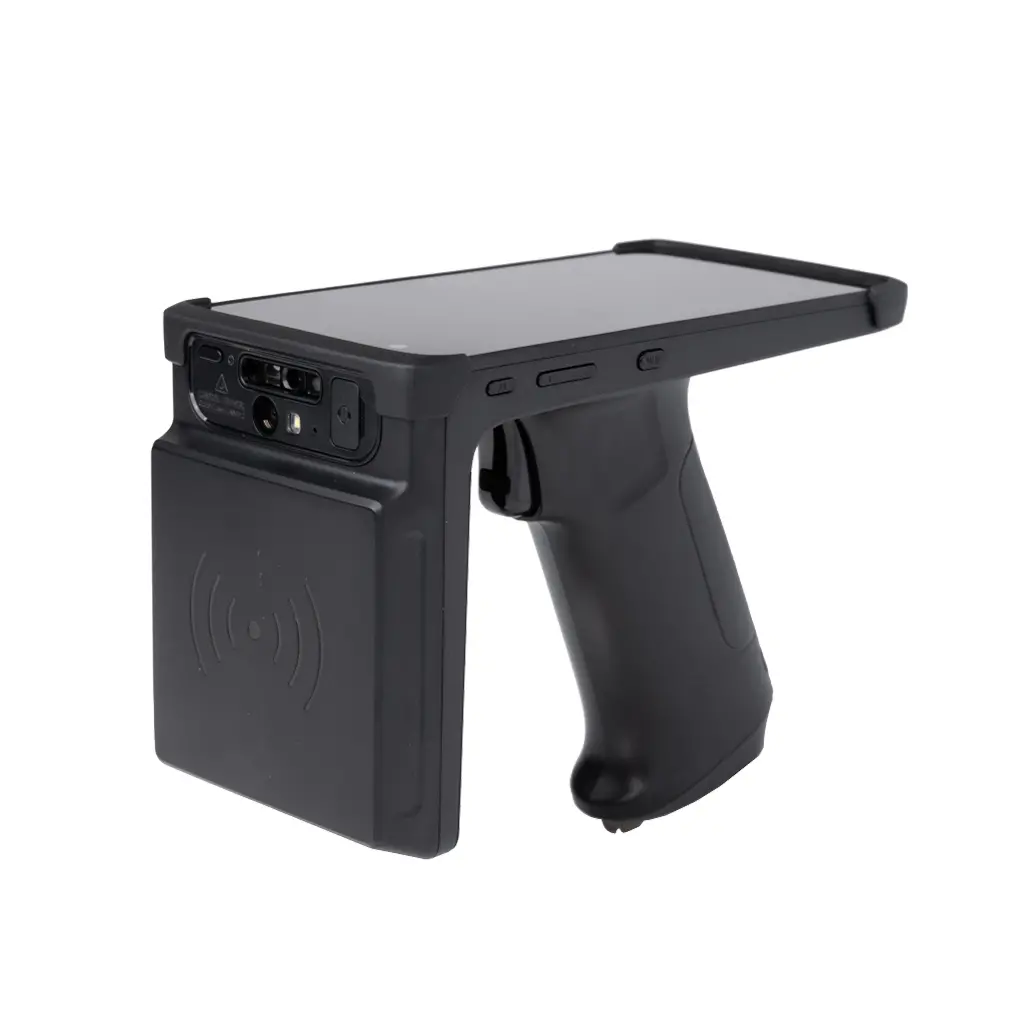

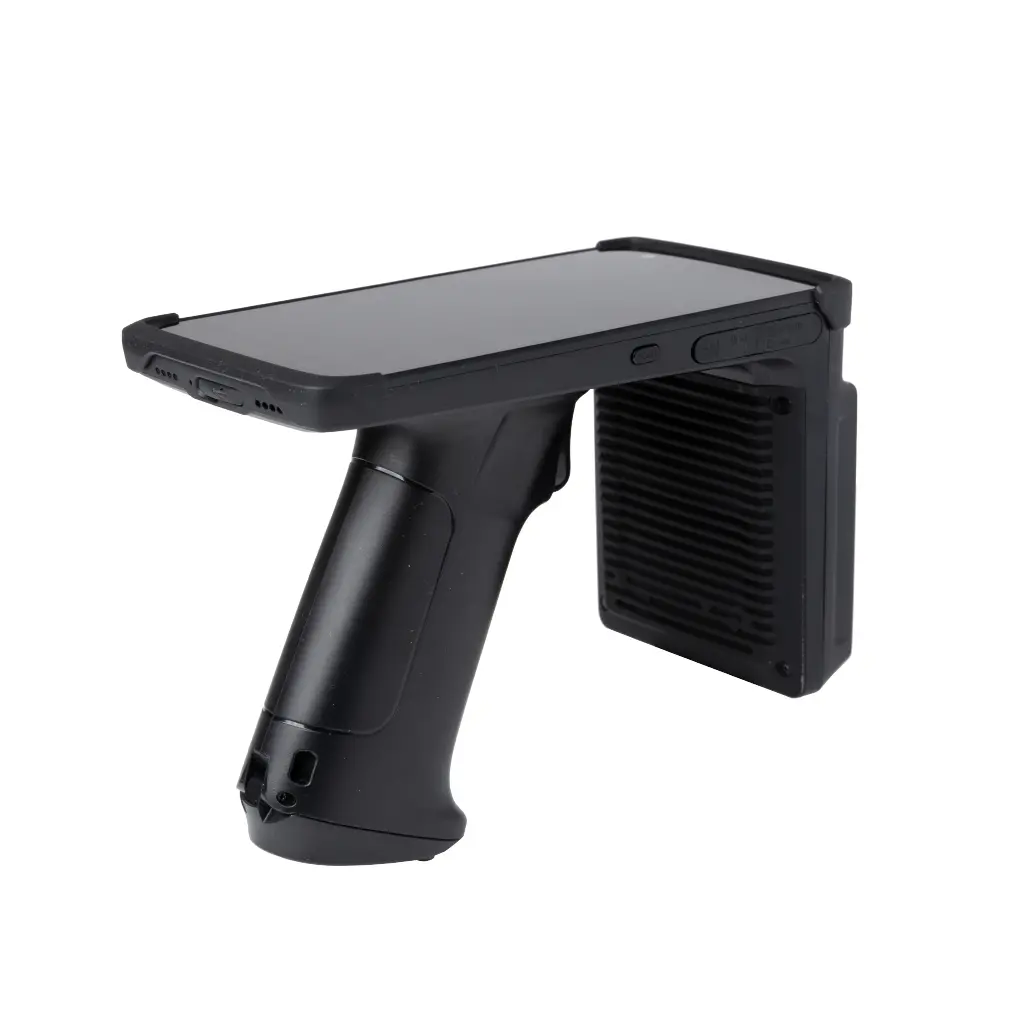

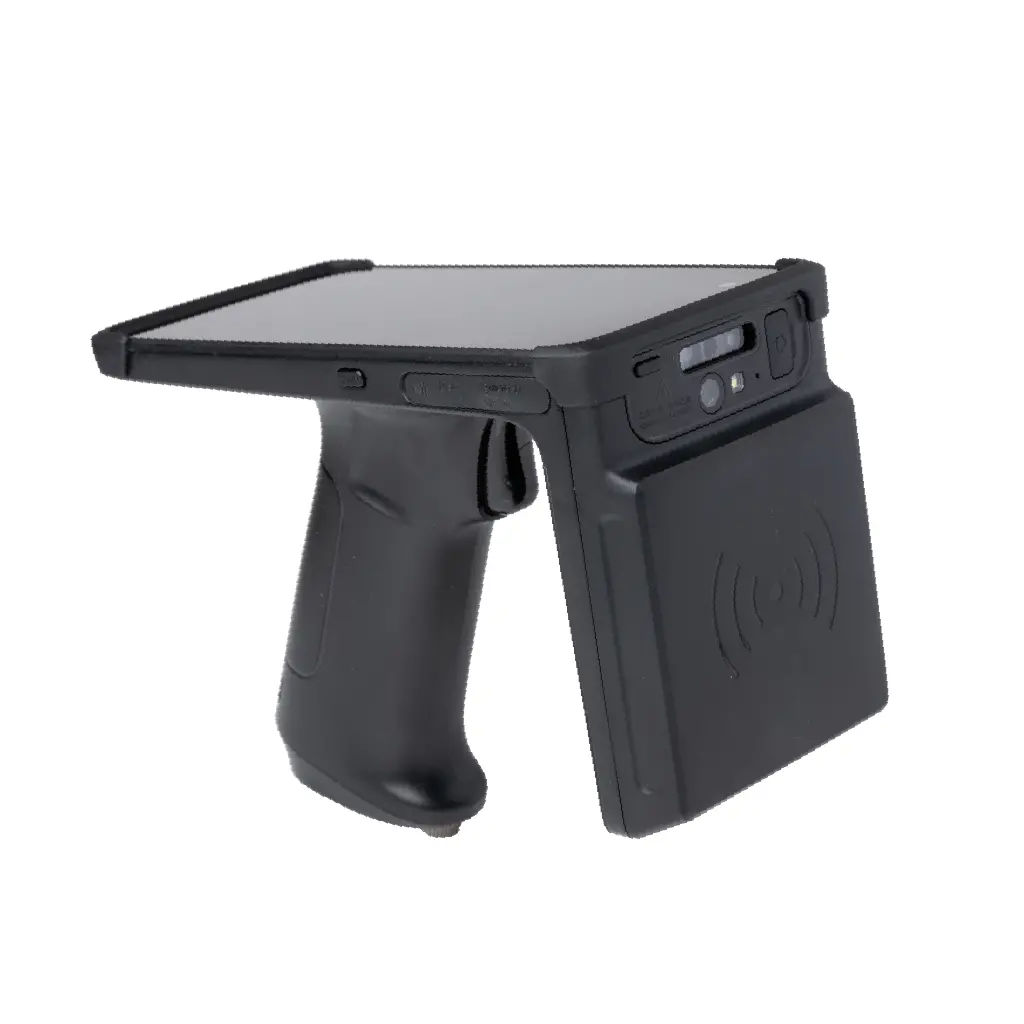

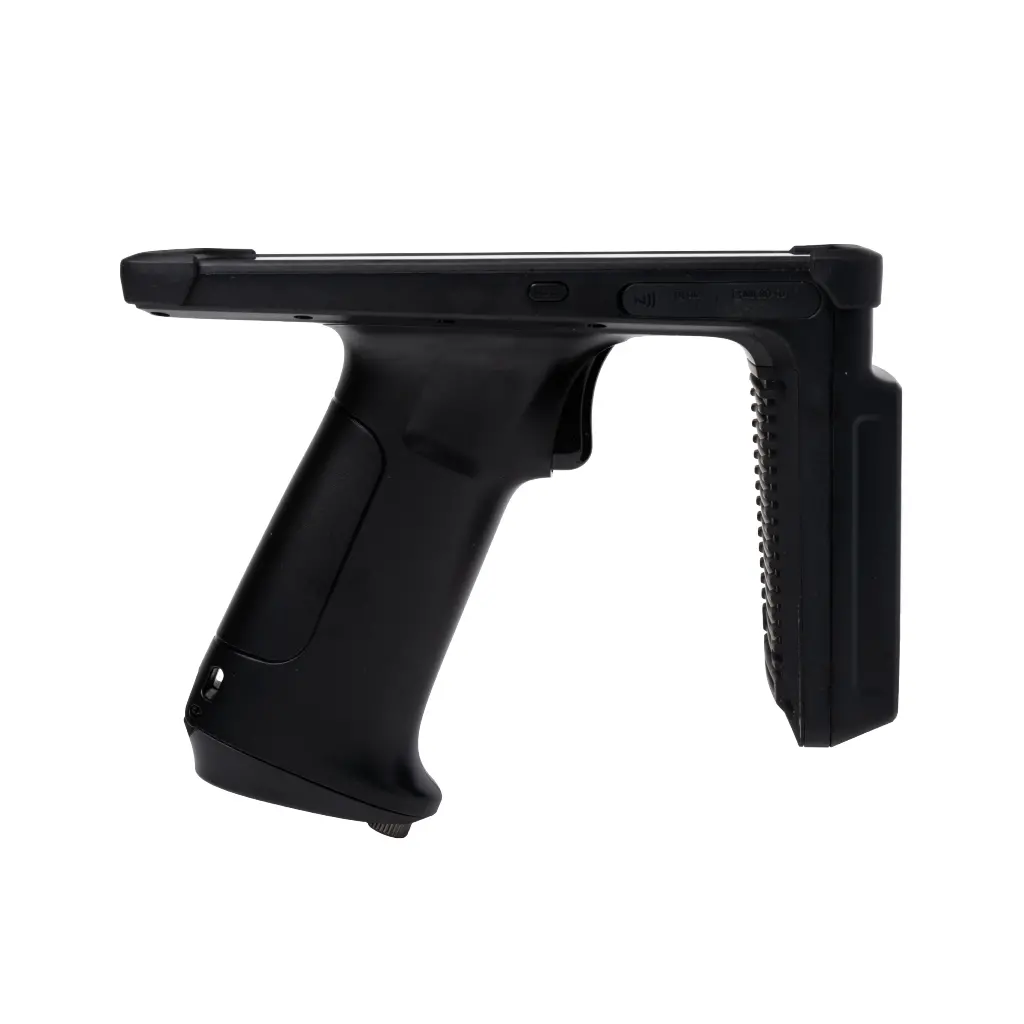

AUTOID UTouch Handheld UHF RFID Reader
- CPU: Qualcomm Octa-core, up to 1.8 GHz
- Display: 5.2-inch FHD resolution
- Memory (RAM/ROM): 4 GB/64 GB
- Power: 6400 mAh
- Weight: 16.9 oz./480 g with battery
- Drop Specifications: Multiple drops from 5 ft./1.5 m
- Sealing: IP65
AUTOID UTouch RFID device with a weight of less than 480g, 40% lighter than similar products, and a reduced fatigue level after long periods of use, allowing you to carry out repetitive tasks easily. Industrial design standards, a slim but rugged design, and durable materials ensure a long-term performance.
Features
Specifications
Applications
Download
Contact Us
Features
● Lightweight, 0.48 kg, sleek design.

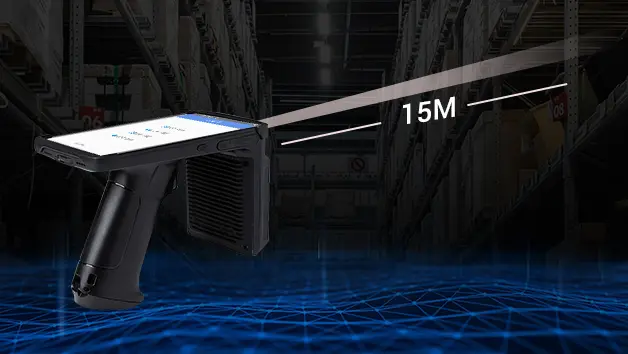

● Impinj R2000/E710, multi-label read rate 200+ tags/sec., single-label reading range up to 15 meters.
● Durable, IP65, 1.5 m drops to concrete, hot-swap pable battery (6400 mAh), unique heat dissipation design, 8-hour continuous operation.
Specifications
Physical Characteristics
Dimensions
3.1 in. L x 5 in. W x 6.1 in. H
79.5 mm L x 127.5 mm W x 156 mm H
79.5 mm L x 127.5 mm W x 156 mm H
Weight
16.9 oz. / 480 g with battery
Display
5.2 in. size capacitive screen, 1080(W) ×1920(H)
Power
Device battery: removable 6400mAh rated capacity
Bottom type-C USB interface, support QC 3.0, support intelligently identifying PC and charger
Support charging cradle for charging the pistol grip
Bottom type-C USB interface, support QC 3.0, support intelligently identifying PC and charger
Support charging cradle for charging the pistol grip
SIM Card Slot
Micro SIM card*1 + PSAM card*1
Expansion Slot
Micro SD Card, 128GB SDHC compatible
Interface / Communication
Industrial waterproof Type-C USB interface, support USB2.0 high speed, support OTG
Notifications
Sound, vibration, LED indicator light
Buttons
Volume +, volume -, power on/off button, 2 scan buttons, pistol grip scan button, and 1 customer key
Voice and Audio
Built-in speaker of 1W, built-in dual microphone, the 3.5 mm stereo headset interface
Performance Characteristics
CPU
Cortex-A53 Octa core 1.8GHz
Operating System
Android 11
Memory
4GB RAM / 64 GB flash memory
User Environment
Operating Temp.
-4℉ / -20°C to +122℉ / +50°C
Storage Temp.
-4℉/-20°C to +122℉ / +50°C(include battery)
-4℉ / -20°C to +158℉ / +70°C(no battery)
-4℉ / -20°C to +158℉ / +70°C(no battery)
Humidity
5% to 95%, non-condensing
Drop Spec.
Multiple drops from 5 ft. / 1.5 m
Sealing
IP65
Electrostatic Discharge (ESD)
±15kV Air discharge, ±8kV direct discharge
Sensor
Acceleration sensor, optical and distance sensor, electronic compass and gyroscope
Data Capture
Scan Engine
Seuic 2D image scan engine
Front Camera
Fixed focus. 5MP
Rear Camera
Auto-focus, 13 MP, support double flashlights
RFID Read/Write(HF) (Special Order Option Only)
Read-write tag
Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A encrypted tags (Mifare one S50, S70 and the compatible cards), support NFC protocol and Identification Cards
Frequency
HF frequency 13.56MHz
Reading Distance
Typical value >2.5cm for ISO15693, typical value >1.5cm for ISO14443A, and typical value >0.5cm for ISO14443B (depending on the tags), support ID cards
RFID Read/Write(UHF)- Standard Configuration
Read-write tag
Support ISO-18000-6C/EPCC1G2
Antenna Parameter
4dBi circular polarization, default as 920-925MHz
Frequency
840-960MHz (may be slightly different depending on the country or region), default 902-928MHz
Operation Mode
Work with frequency hopping spread spectrum (FHSS) or fixed frequency
Output Power
1~33dBm
Reading Distance
≥8m @impinj H47 (depending on the tag and environment)
Writing Distance
0-300cm (depending on the tag and environment)
Multi-tab Reading
200 pieces tags/s (actual speed subjects to the influence of surroundings)
Reading Rate
12ms/word (in average with every word as 32bits)
Writing Rate
60ms/word (in average with every word as 32bits)
Power Consumption
less than 8W (average)
GPS Location information collection
Positioning System
GPS, Beidou, GLONASS (Three in one)
Frequency
GPS: L1 (1.575GHz)
Beidou: B1 (1.561GHz)
GLONASS: L1 (1.602GHZ)
Beidou: B1 (1.561GHz)
GLONASS: L1 (1.602GHZ)
Accuracy
5-10meter (OPEN SKY)
Fingerprint (Option)
Fingerprint
Refer to the specifications for detailed parameters
Wireless Connectivity
WLAN-Protocol
IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI)
WLAN-Frequency Range
Depending on the country (region), 2.4GHz is 2.412GHz-2.472GHz; 5GHz is 5.170GHz-5.825GHz
WWAN-Network
Refer to the specifications for detailed parameters
WPAN-Bluetooth
Bluetooth 4.2 (support BLE), class II
Accessories
Standard
Quick charge adapter×1, Type C data cable×1
Additional
OTG cable, hand strap, single device charging cradle, 4-slot device charging cradle, 4-slot battery charger, handle battery, handle satchel
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11.0
System Programming Environment
Eclipse, android studio
*
Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
