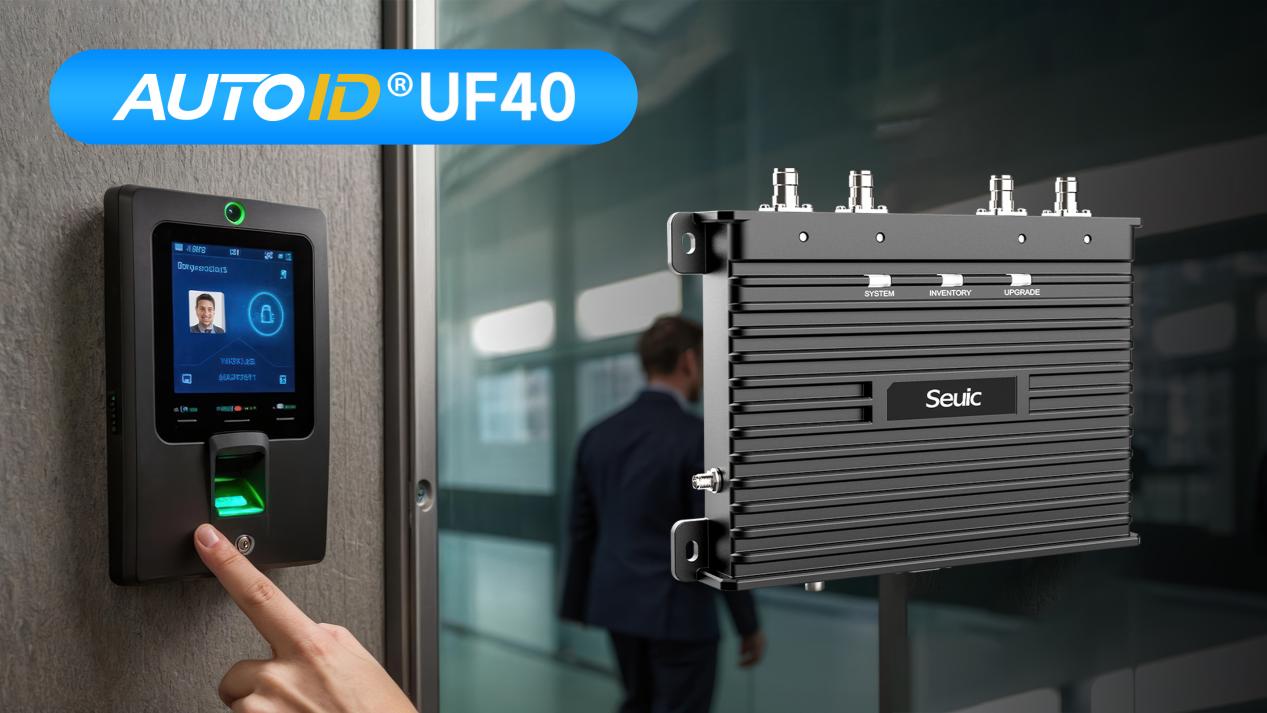

SEUIC AUTOID UF40 Fixed RFID Reader: Core Smart Access Control Solution and Application Practice

In the wave of digital transformation, smart access control systems have become a key node for enterprise security management and efficient operations. The SEUIC AUTOID UF40 fixed RFID reader, as a high-performance UHF identification device, is becoming the core hardware for building a new generation of smart access control solutions with its excellent multi-tag identification capability, stable long-range reading performance, and industrial-grade rugged design. This article will deeply explore the typical application scenarios, technical advantages, and integration value of the SEUIC UF40 reader in smart access control systems, providing a clear path for users seeking security upgrades and efficiency innovation.

1. SEUIC UF40 Fixed RFID Reader: Core Characteristics Analysis​

The SEUIC UF40 fixed reader is designed for scenarios requiring automated, batch identification, forming a complete RFID ecosystem with handheld terminals. Its core advantages include:

1）Efficient Multi-Tag Group Reading​

Based on the built-in Impinj E710 chip and SEUIC's proprietary anti-collision algorithm, the AUTOID UF40 achieves high-speed group reading performance up to 1300 tags/second. This performance makes it particularly suitable for scenarios requiring large-scale tag reading such as warehousing and logistics, and supports Impinj Gen2X protocol. In high-traffic channels, it can instantly read dozens to hundreds of electronic tags within range simultaneously, ensuring no missed reads or stuttering, significantly improving passage efficiency.

2）Stable Long-Distance Identification​

The UF40 supports flexible reading distance configuration (typical reading distance 0-10 meters) and features 12-48V wide voltage input, adapting to voltage fluctuations in industrial environments to ensure long-term stable operation. Its Linux operating system provides high security and upgradability, combined with adjustable signal power, achieving stable long-distance identification in various installation methods such as channel-type and gantry-type, supporting contactless personnel access or rapid verification of tagged assets.

3）Industrial-Grade Reliable Design​

The UF40 adopts a metal shell design with IP54 protection rating, resistant to humid, dusty, and high-temperature harsh environments. Its shock resistance is suitable for mobile scenarios such as vehicle-mounted applications, ensuring 24/7 stable operation in complex industrial environments. It also supports online firmware upgrades, facilitating later maintenance and function expansion, further enhancing the long-term reliability of the device in indoor and outdoor access control systems.

4）Convenient Integration and Open Protocol​

The UF40 supports multiple protocol interfaces including RS232, TCP/IP, and GPIO interfaces, with built-in MQTT IoT protocol and Wi-Fi communication, facilitating quick access to IoT platforms. Developed based on the Linux system, it provides standard SDK and API, supporting enterprise-level security customization applications, and can be easily integrated with access controllers, gates, and enterprise ERP/MES systems to achieve real-time data synchronization and intelligent linkage control.

2. Application Solutions in Smart Access Control Systems​

The application of UF40 upgrades the traditional "one person, one card, active swiping" access control mode to a new management mode of "automation, intelligence, and dataization."

1) Contactless Personnel Access and Attendance Management​

Install UF40 at office building entrances, factory main entrances, or core area passages. Employees wearing UHF RFID badges can be automatically and accurately identified during normal walking without taking out their cards. The system records personnel identity, access time and location in real time, automatically generates attendance data, and links with HR systems to prevent proxy clock-ins, achieving efficient and fair attendance management.

2) Rapid Access Control in High-Flow Areas​

Suitable for large conference centers, stadiums, school cafeterias and other venues. Deploy UF40 readers at entrances and exits linked with gates to instantly identify authorized tags of passing crowds, quickly complete permission verification and control gate actions, effectively guiding pedestrian flow, preventing congestion and tailgating, while ensuring security order.

3) Automated Vehicle and Asset Access Management​

Install anti-metal UHF tags on company vehicles, shelves, important equipment or material boxes. Install UF40 at warehouse gates and factory entrances. When vehicles or assets pass through, the reader automatically identifies tags in batches, records asset flow in real time, and compares with release documents, achieving automated inventory and supervision of asset access, preventing unauthorized asset movement, and improving logistics and asset management transparency.

4) Intelligent Linkage with Video Surveillance and Alarm Systems​

As a key node for IoT data collection, UF40 reading events can trigger linkage operations. For example, when detecting unauthorized tags or blacklisted tags, in addition to denying access, it can immediately trigger on-site audible and visual alarms, link with HD cameras to capture live images, and push alarm information to the security center, forming a complete security closed loop of "identification-judgment-warning-evidence collection".

3. Core Value of Deploying UF40 Solution​

l Efficiency Leap: Improves passage speed from "second-level" to "millisecond-level", significantly reducing waiting time for personnel, vehicles, and materials, enhancing overall operational efficiency.

l Security Enhancement: Achieves accurate identity and permission authentication, automatically executes security rules, reduces risks of human management oversights, and provides traceable data records.

l Lean Management: Real-time, automated data collection provides accurate data support for enterprise personnel management, asset inventory, and process optimization, assisting management decisions.

l Experience Optimization: Contactless or rapid passage experience improves satisfaction of employees and visitors, showcasing the enterprise's modern technological image.

For years, SEUIC has focused on the research and development of products such as fixed scanners, handheld PDAs, RFID readers, and industrial barcode scanners. Leveraging rich design experience in the industrial 4G/5G terminal field and relying on highly reliable product capabilities and efficient services, our products have been widely used in manufacturing, retail e-commerce, logistics and express delivery, healthcare, and public utilities.
